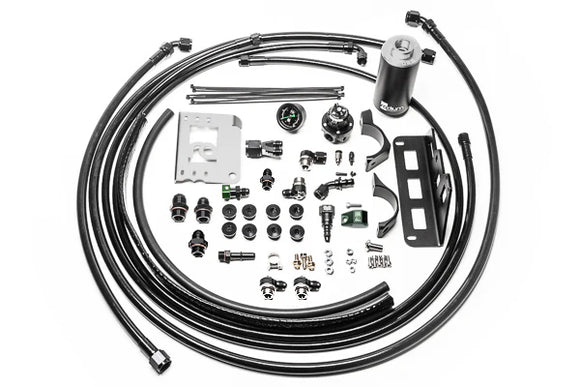

Radium Engineering 08-15 Cadillac CTS-V Fuel Hanger Plumbing Kit - Microglass Filter

• 08-15 Cadillac CTS-V

The CTS-V plumbing kits feature dual 6AN PTFE feed lines that route from the fuel hat to the fuel filter. Two fuel lines are required here for the following reasons:

• A single 8AN fuel line will not fit between the fuel tank and the unibody. The larger combined surface area of two 6AN lines fits nicely.
• The back half of the OEM fuel line is reused. The stock fuel line incorporates the OEM fuel pressure sensor that is needed for ECU diagnostics.

FEATURES

• Repurposed stock feed line as a 6AN return line
• Aluminum hose retainer bracket.
• Fuel filter incorporates a built-in check valve
• A thermal insulating sleeve is included to protect against chaffing and excessive exhaust heat.
• Anodized bolt-in fuel filter mounting bracket does NOT require any permanent vehicle modifications.
• A fuel pressure regulator and pressure gauge mounts directly to the RH fuel rail. Radium Engineering 20-0362 fuel rails are required (sold separately).
