Radium Engineering Mitsubishi EVO 6 Fuel Hanger Connection Kit

20-1332

20-1332 Fuel Hanger Connection Kit, Mitsubishi EVO 6

COMPATIBILITY

• Mitsubishi Evolution VI

OVERVIEW

This kit provides all necessary connections from the top of the fuel tank to the OEM hard lines at the rear of the vehicle.
NOTE: Custom hoses and fittings will need to be purchased and constructed separately to run larger lines all the way to the engine and back.

From the pump outlet, a long 8AN PTFE fuel line runs down underneath the RH side of the fuel tank. An SAE quick connect adapter is provided that connects to the OEM hard line, as shown below.

When returning fuel comes back from the OEM FPR, it travels through an OEM barbed hard line that terminates just underneath the fuel tank. A short rubber hose is provided that adapts to 6AN. From here, a 6AN PTFE hose routes across the tank to the return port on the pump hanger.
Two anodized aluminum clamps are provided to mount the PTFE fuel lines across the upper front portion of the fuel tank, as shown above.

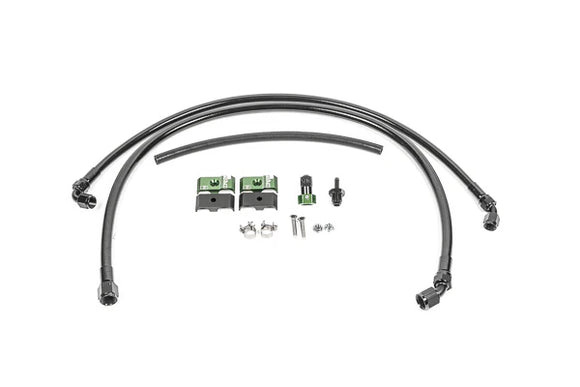

INCLUDES

• 8AN PTFE Fuel Feed Hose
• 6AN PTFE Fuel Return Hose
• SAE Quick Connect Adapter
• Stainless Steel EFI Clamps
• Billet Aluminum Clamps
• Misc. Adapter Fittings
• 4AN Rubber Hose
