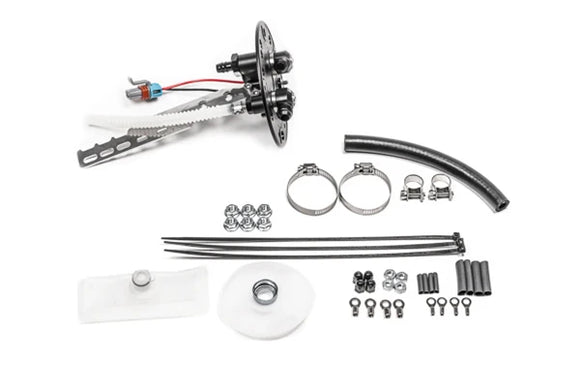

Radium Engineering 93-98 Honda Del Sol Fuel Hanger (wal F90000267/274/285 OR Brushless Pumps)

20-3792

20-3792 Fuel Hanger Fits Walbro F90000267/274/285 or Brushless Pumps

PUMP COMPATIBILITY

• Walbro F90000267⁽¹⁾
• Walbro F90000274⁽¹⁾
• Walbro F90000285⁽¹⁾
• Walbro F90000295⁽¹⁾⁽³⁾
• Ti Automotive E5LM (brushless)⁽¹⁾⁽³⁾
• Protec 11928 (brushless)⁽²⁾
• Fuelab 49614 (brushless)⁽²⁾
• Deatschwerks DW440 (brushless)⁽²⁾
• Deatschwerks DW810 (brushless)⁽²⁾

⁽¹⁾Sock filters are included in this kit for these pumps.
⁽²⁾Sock filters are included by the fuel pump manufacture.
⁽³⁾These pumps do NOT feature a check valve.

PORTS AND FITTINGS

The fuel pump outlet is tapped for 8AN ORB (3/4"-16) female threads on the top plate. The preinstalled 6AN male fitting permits an aftermarket feed line and/or connects to the plumbing kit listed below. For other compatible adapter fittings, click HERE.

The return inlet is tapped for 6AN ORB (9/16"-18) female threads on the top plate. The provided 6AN male fitting permits an aftermarket return line and/or connects to the plumbing kit listed below. For other compatible adapter fittings, click HERE.

NOTES

• If 2 aftermarket pumps are required, you must also purchase the corresponding dual pump add-on for the hanger and pump style being installed.
• If installing a brushless pump, the dual pump add-on can NOT be used due to the extra brushless controller wires.
• Choosing the best fuel pump(s) is based on the expected engine power output, fuel type (gasoline, E85, etc.), and fuel pressure.
• Single Walbro GSS342 (255LPH) fuel pump installations can re-use the OEM fuel pump wiring.
• It is recommended to upgrade OEM wiring to ensure the pumps are receiving full power and operating at their full potential.
• Universal fuel pump wiring kits can be found HERE. Select one for each aftermarket pump.

ELECTRICAL

The custom designed anti-rotation stainless steel electrical studs easily handle the high current demand that compact multi-pin bulkhead connectors lack. These serviceable connections are hermetically sealed and impervious to all standard and exotic fuels. Non-conductive anodized aluminum acorn nuts are provided to prevent any accidental short circuiting. Furthermore, the in-tank wiring is insulated with high quality chemically resistant ETFE.

FEATURES

• Drop-In Installation
• Anodized Aluminum Construction
• Merged 8AN ORB Female Pump-Out Port
• Fittings for Aftermarket Fuel Lines
• Capable of 2 Pumps with Add-On
• Compatible with Various Pumps
• Included Fuel Pump Filter Sock
• High Current Electrical Hardware
• Stainless Steel Hardware and Clamps
• Gasoline, Methanol, and E85 Compliant
• Anti-rotation Electrical Terminals
