2016-2021 Honda Civic 1.5T Titanium Turbocharger Inlet Pipe Upgrade Kit-Black Thermal Coated

PRL.1098.1.TI-TH

Overview

The PRL Motorsports 2016-2021 Honda Civic 1.5T Black Thermal Coated Turbocharger Inlet Pipe Kit is designed to reduce restriction in the factory intake tract and help maximize airflow into the turbocharger.

This version takes our proven titanium inlet pipe design and adds a Black Thermal Coated finish for improved thermal management and a clean, refined engine bay appearance. The thin-wall titanium construction helps reduce heat soak, while the Techline Polyphen Thermal Dispersant coating is engineered to rapidly disperse heat away from the inlet pipe surface and promote more even heat distribution.

Our design uses a cast aluminum inlet piece for a smooth transition from the gasket-matched 50mm ID compressor inlet to a 76.2mm OD / 74mm ID titanium crossover pipe. The compressor outlet diameter is also increased from the factory 38mm diameter to 45mm, helping improve airflow volume while maintaining strong velocity for the 1.5L platform.

Key Features

• Titanium turbocharger inlet pipe construction
• Black Thermal Coated finish using Techline Polyphen Thermal Dispersant
• Helps reduce localized heat soak in the intake tract
• Larger diameter than the factory inlet path
• Smooth-transition cast aluminum inlet piece
• Increased compressor outlet diameter from 38mm to 45mm
• 76.2mm OD / 74mm ID titanium crossover pipe
• Multi-piece design for easier installation and improved fitment
• No ECU calibration required

Fitments

• 2016-2021 Honda Civic 1.5T
• 2017-2022 Honda CR-V 1.5T with OEM Civic inlet bracket PN: 17288-5K8-000
• Fits Si, 6MT, CVT, RHD, and international models
• Fits all factory fitment turbochargers

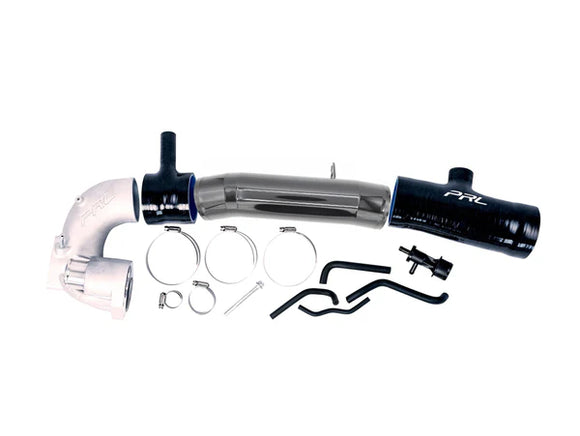

What’s Included

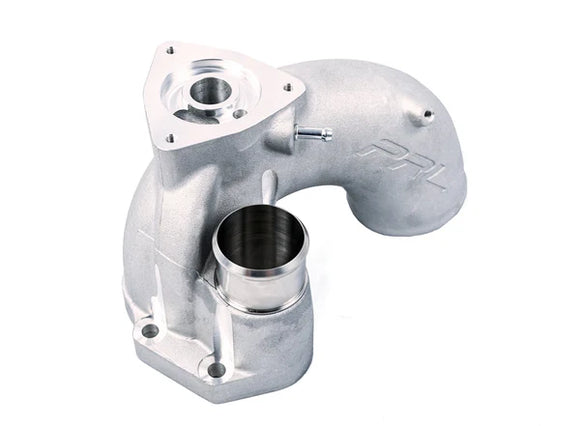

• (1) Cast Aluminum Inlet Piece

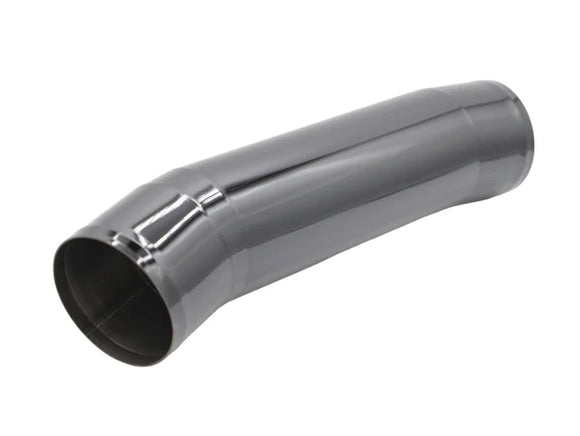

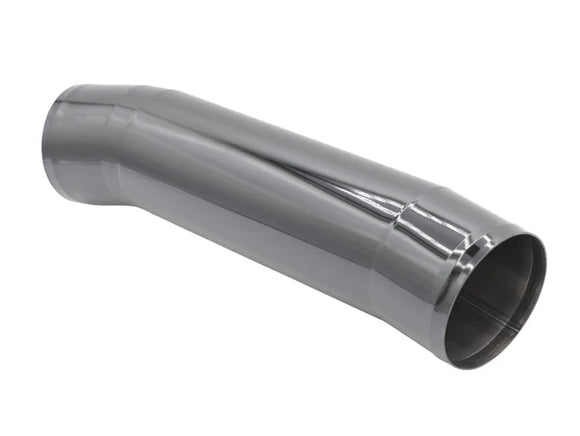

• (1) 76mm OD Titanium Inlet Pipe, Black Thermal Coated

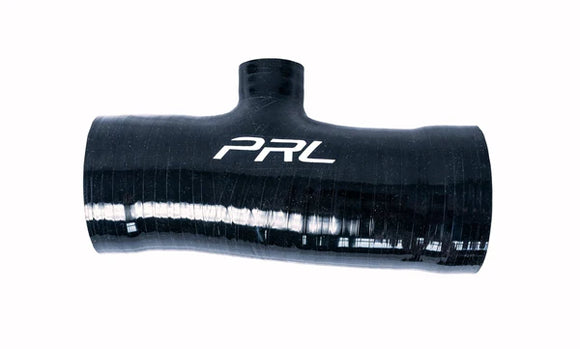

• (2) High-Temp 4-Ply Silicone Couplers
• (5) 304 Stainless Steel Interlocking Worm Clamps

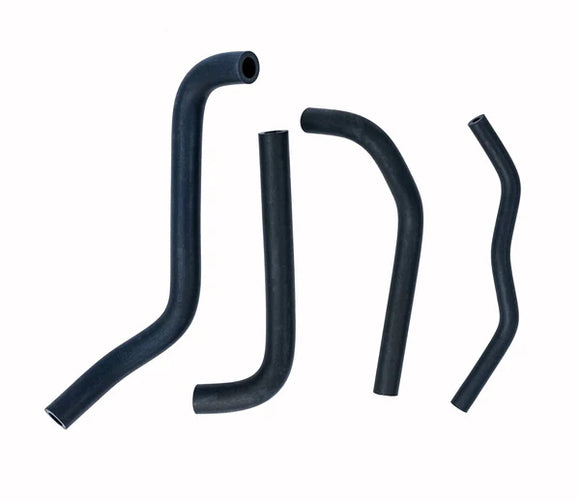

• (4) Vacuum Hoses

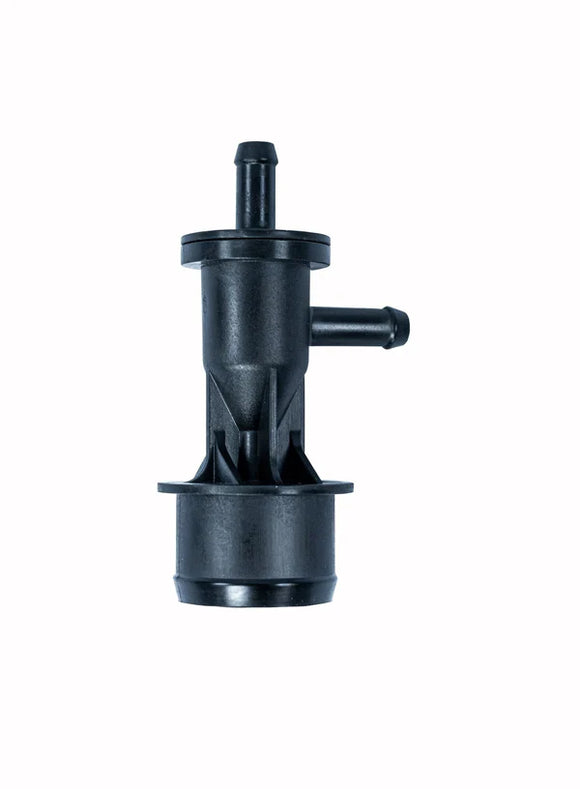

• (1) Injection Molded Evap Purge Fitting
• (2) Buna O-Rings
• (1) Bolt
• (1) Wiring Harness Tie-Down

Important Notes

• No ECU calibration required
• Only compatible with PRL Motorsports Cobra Cold Air Intake or Short Ram Intake System
• Does not fit the stock airbox
