4068 – GM A-Body Front Sway Bar Relocation Bracket

4068 – GM A-Body Front Sway Bar Relocation Bracket

$64.24 CAD

Shipping calculated at checkout

UMI Performance SKU: umi4068

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

4068

Sway Bar Relocation Kit

4068 – GM A-Body Front Sway Bar Relocation Bracket

Gain essential front sway bar clearance for oversized idler arms and larger diameter sway bars on GM A-Bodies. CNC-machined 6061 aluminum with Grade 8 hardware.

Idler Arm Clearance6061 Billet AluminumFront Sway Bar DropGrade 8 Hardware1964-1977 GM A-Body100% USA-Made

✓
Eliminates component interference by relocating sway bar mounts forward 0.745 inches.
✓
Precision CNC-machined from solid 0.75-inch thick 6061 billet aluminum.
✓
Corrosion-resistant finish with durable black anodizing for long-lasting performance.
✓
No-drill installation includes Grade 8 hardware for multiple frame thread sizes.

Description

What it solves

Resolve clearance issues on your classic muscle car with UMI Performance's 4068 Front Sway Bar Relocation Kit. Precision CNC-machined from solid 0.75-inch 6061 billet aluminum with a corrosion-resistant black anodized finish, these adapter mounts move your front sway bar bushing mounts forward by 0.745 inches while providing a 0.75-inch bar drop. This added clearance prevents contact between the sway bar and replacement idler arms with oversized pivots or larger-diameter aftermarket sway bars.

Engineered for 1964–1977 GM A-Body platforms including Chevelle, LeMans, Cutlass, and Skylark, the 4068 kit features slotted mounting holes to fit both 2-9/16 inch and 2.75 inch center-to-center chassis hole patterns. Each complete kit includes two relocation adapters (4068F) and Grade 8 hardware in both 5/16-inch and 3/8-inch threads for a direct bolt-on install without drilling. Road and track tested at UMI Motorsports Park, this kit is 100% made in the USA.



Product Features

Key details
✓
Moves front sway bar mounts forward 0.745 inches
✓
CNC-machined 0.75-inch thick 6061 billet aluminum
✓
Durable black-anodized coating for corrosion resistance
✓
Elongated mounting slots fit multiple frame hole spacings
✓
Complete Grade 8 mounting hardware kit included
✓
Direct bolt-on design requiring no frame drilling
✓
Road and track tested on GM A-Body platforms
✓
100% designed and manufactured in the USA

Detailed Features

Technical breakdown
✓
Forward offset geometry: Relocates the sway bar bushing mounts 0.745 inches forward to eliminate binding with enlarged idler arm pivots.
✓
CNC-machined 6061 aluminum: Machined from solid 0.75-inch thick billet aluminum to provide exceptional strength, dimensional accuracy, and rigid mounting.
✓
Black anodized finish: Surface treated with a tough anodized layer that protects against rust, road grime, and corrosion while looking clean.
✓
Adaptable bolt pattern: Features precision-slotted mounting holes accommodating both 2-9/16 inch and 2.75 inch center-to-center chassis hole dimensions.
✓
Dual-thread Grade 8 hardware: Supplies both 5/16-18 and 3/8-16 high-strength bolts, allowing seamless installation on factory or re-threaded frames.
✓
Sway bar angle leveling: Lowers the sway bar mount by 0.75 inches, helping level bar geometry for consistent suspension performance.
✓
Direct bolt-on installation: Fastens directly into factory frame holes using basic hand tools without requiring cutting, drilling, or modification.
✓
Track-tested validation: Proven under hard driving conditions on UMI test vehicles at UMI Motorsports Park for real-world reliability.

Product Outcomes

On-road impact
✓
Prevents sway bar contact with aftermarket idler arms featuring oversized center pivot housings.
✓
Accommodates larger diameter performance sway bars without interference during front suspension articulation.
✓
Improves front sway bar operating angle by dropping bushing mounts 0.75 inches.
✓
Eliminates irritating suspension clunks and clearance issues caused by tight steering component spacing.
✓
Ensures hassle-free installation on modified or classic frames with versatile multi-size hardware options.

Installation Summary

Before you buy

Overview & Difficulty: Easy DIY install requiring standard socket set, ratchet, torque wrench, and jack with jack stands; estimated time is 0.5–1 hour. Installation involves lifting the vehicle, loosening end links to remove tension, unbolting sway bar clamps, installing adapter blocks into front frame holes, securing rear clamps, and torquing hardware to specification (18–20 ft-lbs for 5/16-inch hardware; 30–35 ft-lbs for 3/8-inch hardware). Re-tighten end link bushings upon completion. No frame drilling required.

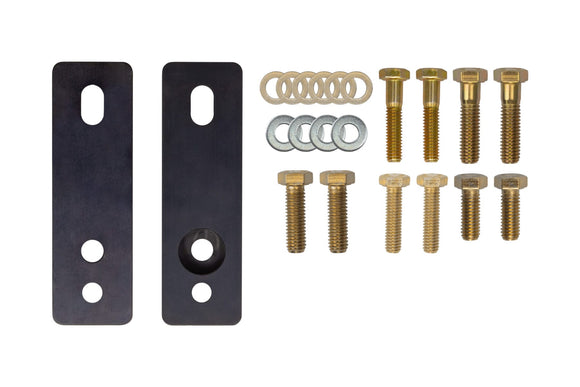

What’s Included:
  • CNC-machined 6061 aluminum sway bar relocation adapter mounts (PN 4068F) ×2
  • 3/8-16 × 1-1/4" Grade 8 hex bolts ×2
  • 3/8-16 × 1-1/2" Grade 8 hex bolts ×2
  • 3/8-16 × 1" Grade 8 hex bolts ×2
  • 3/8" AN flat washers (.060" thick) ×6
  • 5/16-18 × 1-1/4" Grade 8 hex bolts ×2
  • 5/16-18 × 1-1/2" Grade 8 hex bolts ×2
  • 5/16" Grade 8 flat washers ×4

Is This Product Right for You?

Decision guide

UMI 4068 relocation mounts solve front suspension clearance conflicts on GM A-Bodies, creating the space needed for oversized idler arm pivots and heavy-duty front sway bars. By moving the bar forward and dropping it slightly, drivers eliminate annoying component contact while maintaining proper bar operation for street or track driving.

Best For
✓
1964–1977 GM A-Body owners installing replacement idler arms with larger pivot housings.
✓
Builders upgrading to larger diameter front performance sway bars with tight chassis clearance.
✓
Enthusiasts seeking a direct bolt-on solution that requires zero frame drilling or modifications.
Not Ideal For
×
Stock A-Body vehicles retaining original idler arms and standard sway bar dimensions.
×
Owners expecting additional tire clearance, as this product only repositions sway bar mounts forward.
×
Custom aftermarket chassis setups where original factory sway bar mounting holes are absent.
