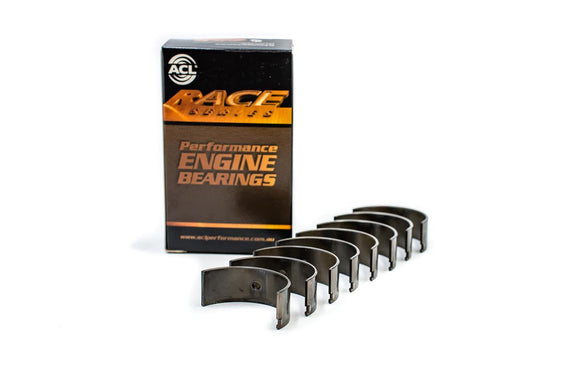

ACL Toyota 4A-GE 4A-GZE 16V 20V Standard Size Rod Bearing Set

ACL Toyota 4A-GE 4A-GZE 16V 20V Standard Size Rod Bearing Set

$22.91 CAD $28.41 CAD Save $5.50 CAD

Shipping calculated at checkout

ACL SKU: 4B1780A-STD

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

4B1780A-STD

  • High performance aluminium-tin, steel backed cam bearings
  • Designed to withstand higher RPM conditions
  • High strength overlay plate with reduced thickness for improved fatigue properties
Sizes STD, .025, .25, .50
Oil Clearance
Half Type Identical halves
Material F781
Min. Std Shaft Size 41,985 mm / 1.6529 in
Max. Std Shaft Size 42 mm / 1.6535 in
Min. Std Tunnel Size 45 mm / 1.7717 in
Max. Std Tunnel Size 45,024 mm / 1.7726 in
Max Wall at Crown 1,487 mm / 0.0585 in
Max Overall Length
17,1 mm / 0.6732 in
Notes
Diagrams
1780H
1780H
Make
Engine
Description
Vehicles
Toyota 4A-GE (20v) Toyota 4A-GE (20v) 1587cc Inline4 DOHC 5v Toyota Corolla AE92
Toyota 4A-GE Toyota 4A-GE 1587cc Inline4 DOHC 4v Toyota Corolla AE92
Toyota 4A-GEC Toyota 4A-GEC 1587cc Inline4 DOHC 4v
Toyota 4A-GELC Toyota 4A-GELC 1587cc Inline4 DOHC 4v
Toyota 4A-GZE Toyota 4A-GZE 1587cc Inline4 DOHC 4v Supercharged
