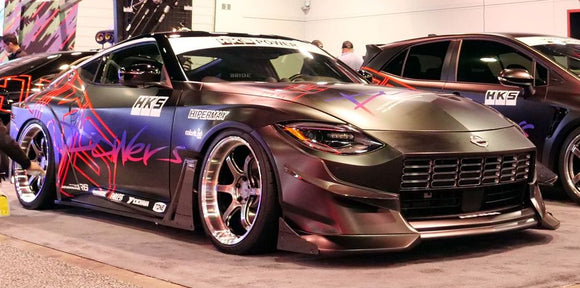

HKS BODY KIT TYPE-R FAIRLADY Z BASE KIT

$11,715.00 CAD

Shipping calculated at checkout

HKS SKU: 53004-AN001

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Specifications

Product Code
53004-AN001
WEIGHT(kg)
29
NO. OF BOX
1
LENGTH (mm)
1970
WIDTH (mm)
590
HEIGHT (mm)
820
Make
NISSAN
Model
Z
Model Year
2022-2025
Engine
VR30DDTT
Chassis code
RZ34
Drive Train
RWD

Remarks

Canards and ducktails are not included.

An aggressive wide body kit, inheriting the design from the succeeding HKS continuous time attack machines.

Concept
The design is based on the HKS racing style, but with a GT look for the street. Since a wide tire can be fitted on the rear in stock conditions, the body kit is not extremely wide, but was designed with the consideration to be used for touring and occasionally for circuit driving.

Styling
Expresses strength and sharpness. Incorporating Carbon Fiber in key areas creating a sense of performance and a luxurious feel.



Code No.

Name

Composition

53004-AN001

HKS Body Kit TYPE-R for Fairlady_Z Base Kit

①, ②, ③, ④

53004-AN002

HKS Body Kit TYPE-R for Fairlady_Z Canard

53004-AN003

HKS Body Kit TYPE-R for Fairlady_Z DuckTall

※For black gel-coated parts Paint is required.

Product Features
Front Spoiler
The design is intended to embody the HKS racing style while still preserving the distinctive Nissan Z appearance. Designed to follow a GT car style with just the appropriate amount of sharpness.

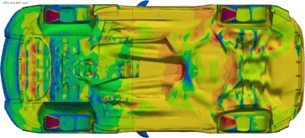

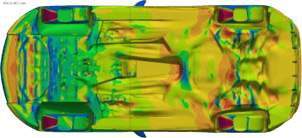

Bottom view (pressure)
Rectifying the airflow passage, it establishes an effective approach from the front to the under-panel. This substantially alleviates pressure on the underside of the front bumper and generates downforce.
HKS Stock High

Low

Front Fender
The fender are crafted to replace the factory fender, eliminating the retrofit appearance. The upper section of the fender features a pressed line, ensuring a continuous line from the door panel to the rear. Vortex generators are strategically positioned on the surface, extending from the fender to the side sills, effectively reducing driving resistance.

+12.5 mm wide on one side compared to stock

Side Skirt
The simple side sills were designed to balance the genuine body design.
While the concept is simple, the side sills are designed to look different when standing on the side of the vehicle.
The barge panel, which is the identity of HKS Aero, is also set on the Z. The size and design of the barge panel were adopted to ensure balance with the rear of the front fender.

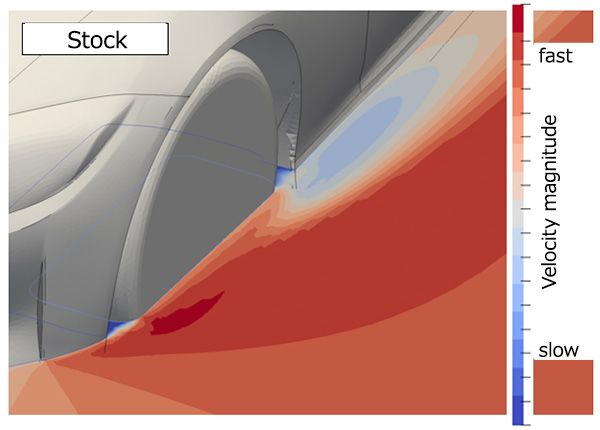

Flow around barge panels
Fast flow is formed inside the barge panel (effect of pressure reduction in the front wheelhouse)

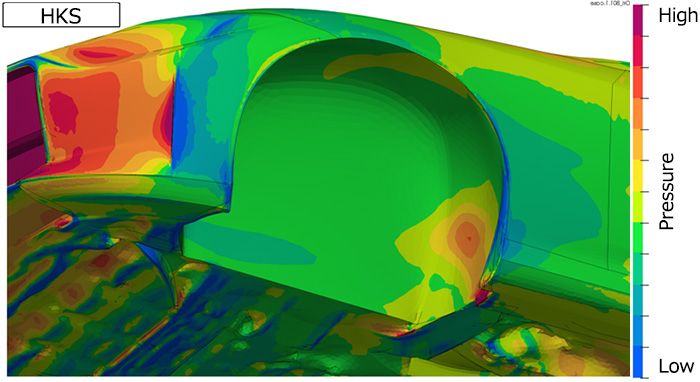

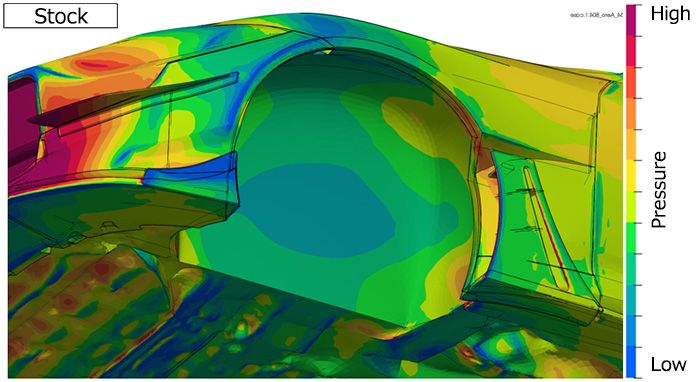

Pressure in the front tire house
The canard and side barge panels also contribute to reducing overall pressure in the tire housing, resulting in increased downforce.


Rear Fenders
As the vehicle can accommodate wide rear tires in stock form, the design is not excessively broad, but is tailored for circuit use while maintaining everyday touring functionality. The upper press line and concave shape at the rear were incorporated to provide a visually wide appearance with minimal added thickness. Press lines were introduced to the sleek design of the stock body creating a GT car style. While the tire area was sculpted to be sharp and tight. The result is a substantial visual width, reaching a remarkable +8mm per side.
