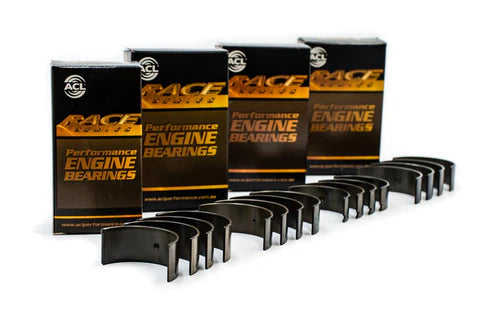

6B1515HX-STD
- High performance Trimetal engine bearings
- Designed to withstand higher RPM conditions
- High strength overlay plate with reduced thickness for improved fatigue properties
Specifications for STD size only
| Sizes | STD |
| Oil Clearance | |
| Half Type | Identical halves |
| Material | F781 |
| Min. Std Shaft Size | 49,975 mm / 1.9675 in |
| Max. Std Shaft Size | 49,991 mm / 1.9681 in |
| Min. Std Tunnel Size | 53 mm / 2.0866 in |
| Max. Std Tunnel Size | 53,015 mm / 2.0872 in |
| Max Wall at Crown | 1,48 mm / 0.0583 in |
| Max Overall Length |
18 mm / 0.7087 in
|
- High strength overlay plate with reduced thickness for improved fatigue properties
- Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
- Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
- 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
- Tight consistent wall tolerances to help you maintain consistent clearances.
- Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
|
Make
|
Engine
|
Description
|
Vehicles
|
|---|---|---|---|
| BMW | S50B30 | BMW S50B30 2990cc Inline6 DOHC 4v | BMW M3 E36 |
