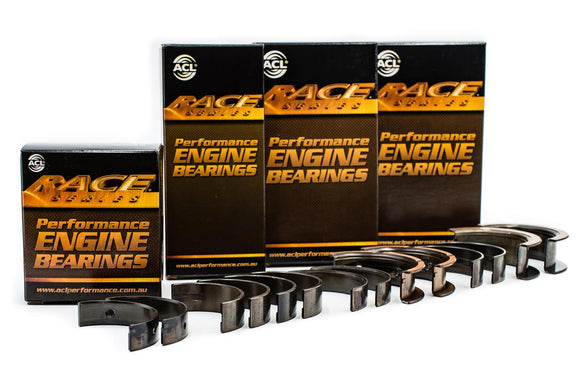

ACL VW VR6 Inline 6 Diesel .25mm Oversized High Performance Main Bearing Set

7M5532H-.25

• High performance Trimetal engine bearings
• Designed to withstand higher RPM conditions
• High strength overlay plate with reduced thickness for improved fatigue properties

Sizes	STD, .025, .25
Oil Clearance
Half Type	Upper & lower
Material	F780
Min. Std Shaft Size	59,958 mm / 2.3605 in
Max. Std Shaft Size	59,978 mm / 2.3613 in
Min. Std Tunnel Size	65 mm / 2.5591 in
Max. Std Tunnel Size	65,01 mm / 2.5594 in
Max Wall at Crown	2,501 mm / 0.0985 in
Max Overall Length	17 mm / 0.6693 in
Notes
Diagrams	5532H-L (1,2,3,4,5,6,7) 5532H-U (1,2,3,4,5,6,7)

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.
