Specifications
|
Spring Rate [N/mm(kgf/mm)] |
F= 78 (8) R= 88 (9) |
|
Spring Length (mm) |
F= 250 (Straight) R= Stock |
|
Height at Factory (mm) (Upper - Lower) |
F= -28 (+1 to -75) R= -24 (0 to -73) |
|
Upper Mount |
F= Pillow R= Reinforced rubber |
|
Spring Rate Change at Factory [N/mm(kgf/mm)] |
F= +20 (2) R= Not available |

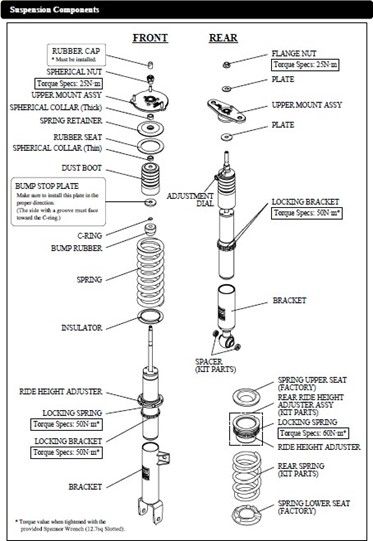

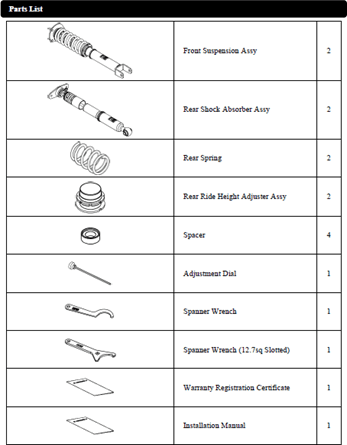

Components
In terms of performance, it achieved ideal damping force characteristics and a wide adjustment range by employing the HKS "preload valve system" and "Wide range needle. In terms of quality, the spring insulator and rubber seat are equipped as a standard. Confident 3-year long-term warranty.

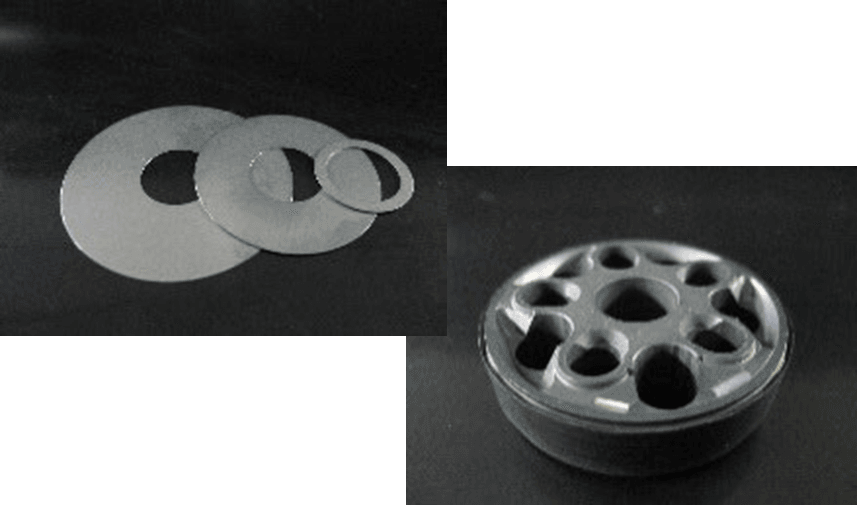

Preload valve system
The preload valve system is employed in the product.
Eliminating the damping force in the high- speed range and suppressing unnecessary movement. It provides a comfortable ride without pushing up.
3-year High-durable specification
It achieves high durability and low friction through the evolution of the tribology.
We brushed up on the ride's comfort and handling.
