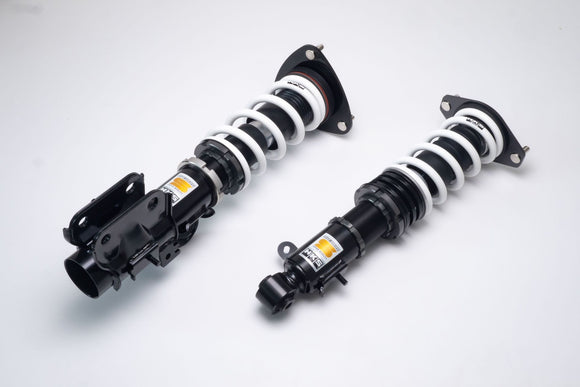

Specifications
Single Tube
30 levels Adjustable Damping
Inverted- type (Front)
Shock- body Length Adjustable
Rubber Upper Mount Assy
DUAL PVS
Special Oil
PNE Coating
Spec. Change Available
Overhaul Available
3-year Warranty
The suspension is set to move flexibly while absorbing detailed impacts from the road surface. It has improved the ride comfort on the street by improving the followability on the road surface and reducing unnecessary movements by generating a solid damping force against road swells and movements during cornering.
It can easily feel the vehicle's behavior thanks to the positive load transfer and can be enjoyed safe driving even in a limit range by suppressing sudden movements.

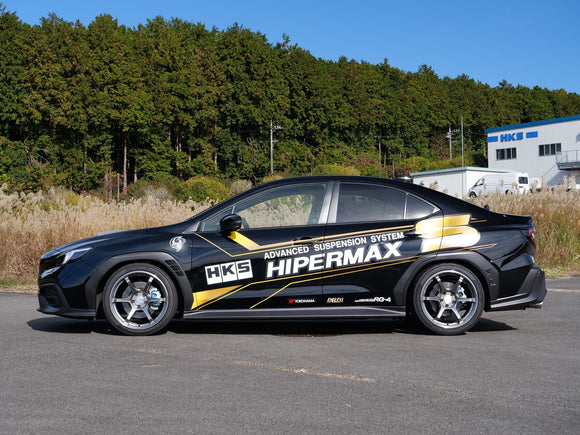

You can fully experience the high-rigid SUBARU global platform and full inner frame structure.
It has high durability of 60,000 km for three years by reviewing the internal parts.
|
Spring Rate [N/mm(kgf/mm)] |
F= 69 (7) R= 59 (6) |
|
Spring Length (mm) |
F= 200 (Straight barrel) R= 170 (Straight) |
| Height at Factory (mm) (Upper - Lower) |
F= -29 (0 to -52) R= -32 (0 to -74) |
|
Upper Mount |
F= Rubber R= Rubber |
|
Spring Rate Change at Factory [N/mm(kgf/mm)] |
Not available |
