Garrett GTX3584RS Turbo Assembly Kit V-Band / V-Band 1.21 A/R

856804-5003S

Product Description

GTX And GTX Gen II Series Turbochargers Are An Evolution Of The GT Series Product Line. The Original Architecture Of The GT Series Turbos Remains However Many Design And Performance Features Have Been Introduced Over Time. Ceramic Dual Ball Bearings And Forged Fully-Machined Compressor Wheels With GTX And GTX Gen II Aerodynamics Provide A Larger Horsepower Range And Maximize Boost Response.

Key Features

• Gen 2 Aerodynamics Feature Increased Horsepower Range
• ”Rs” Designed, High Horsepower Turbine Wheel
• 67MM Turbocharger Compressor Incuder
• Compact Design For Tight Installations
• New Fully-Machined Speed Sensor Port.
• Comp Outlet: V-Band

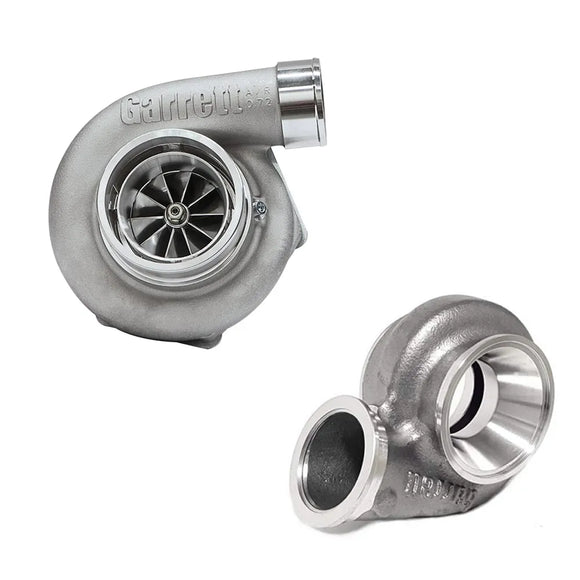

• Sold As Assembly Kits (Supercore + Turbine Housing)
• 1.21 A/R With V-Band Turbine Inlet Flange

Maximum Allowable Turbocharger Speed130KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner's Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

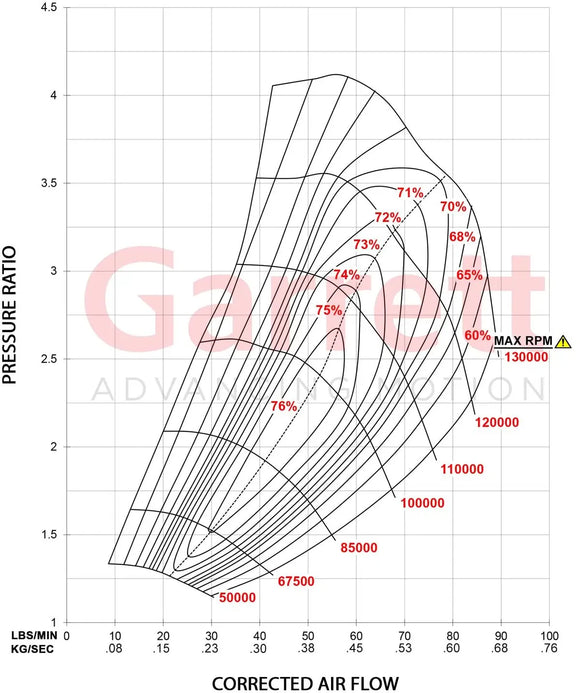

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle's Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.
