Air Spring Rear 04-10 BMW 5 Series Wagon (E61) A-3616 Air Spring Rear Left 08-18 Toyota Sequoia (XK60)

$399.60 CAD

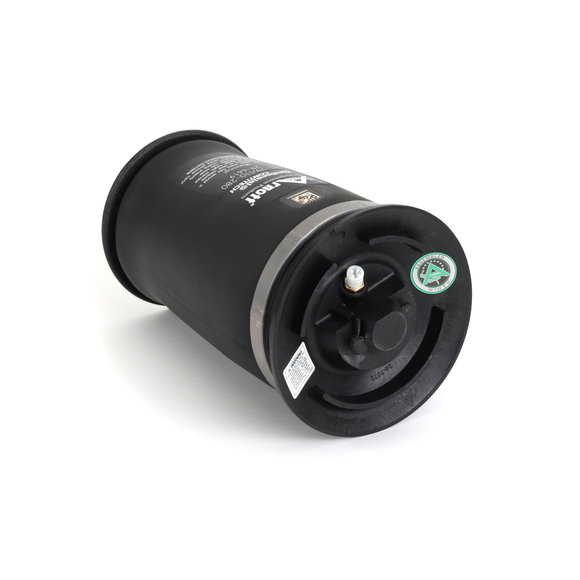

Arnott SKU: A-2755

A-2755

Air Spring

Arnott Air Springs are engineered in our Research and Development Center and then undergo extensive lab and vehicle road-testing to assure product standards and quality. Arnott springs feature state-of-the art, multi-ply air sleeves manufactured by industry-leading rubber companies such as ContiTech and Goodyear. Arnott springs are assembled, tested, and packaged in Arnott’s American and EU facilities using ISO-certified quality management principles. Arnott Air Springs last longer, are easier to install, and provide unparalleled ride comfort and durability.

  • Exclusively for BMW 5-series Wagons (E61)
  • Fits REAR RT/LT
  • Multi-ply Firestone air sleeve
  • Heavy-duty crimping rings
  • High-impact resin upper mount and bottom piston
  • 4mm quick-connect air line fitting
  • Constructed to meet or exceed industry’s standards for quality, reliability and function
  • Replace in pairs
Air Spring Type: Sleeve Style
Bearing Plate Included: No
Bellows Color: Black
Bellows Material: Rubber
Bellows Material Thickness: 2.59 (mm)
Boot Included: No
Grade Type: Standard
Lower Mount Type: Base Cup
Mounting Hardware Included: No
Upper Mount Type: Stud
Make Model Year
BMW 530xi 2006-2007
BMW 535i 2010
BMW 535i xDrive 2009-2010
BMW 535xi 2008

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
37126765602 BMW
