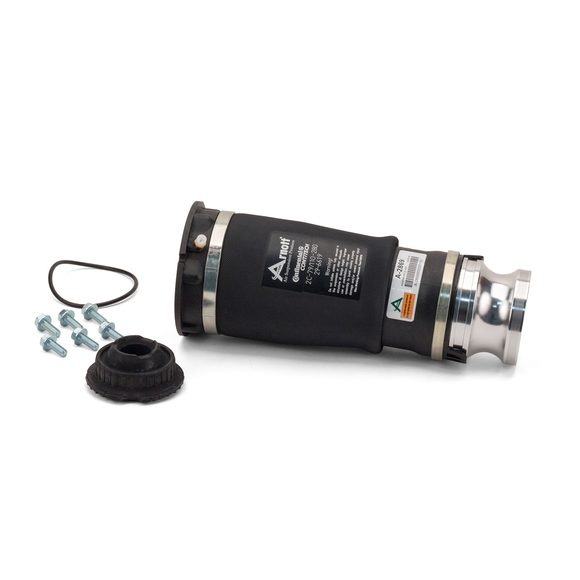

Air Spring Front 01-05 Audi Allroad Quattro (C5) A-4008 Air Spring (Gen II) Rear 13-20 Ram 1500/1500 Classic (DS)

$277.20 CAD

Arnott SKU: A-2869

A-2869

Air Spring

Arnott Air Springs are engineered in our Research and Development Center and then undergo extensive lab and vehicle road-testing to assure product standards and quality. Arnott springs feature state-of-the art, multi-ply air sleeves manufactured by industry-leading rubber companies such as ContiTech and Goodyear. Arnott springs are assembled, tested, and packaged in Arnott’s American and EU facilities using ISO-certified quality management principles. Arnott Air Springs last longer, are easier to install, and provide unparalleled ride comfort and durability.

  • Exclusively for Audi Allroad Quattro (C5)
  • Fits FRONT
  • Multi-ply Continental ContiTech air sleeve
  • Custom-Molded High-Impact Nylon Cap and Piston
  • Heavy-duty crimping rings
  • New O-rings
  • 4mm quick-connect air line fitting
  • Replace in pairs
Air Spring Type: Sleeve Style
Bearing Plate Included: No
Bellows Color: Black
Bellows Material: Rubber
Bellows Material Thickness: 2.49 (mm)
Boot Included: Yes
Grade Type: Standard
Lower Mount Type: Base Cup
Mounting Hardware Included: Yes
Upper Mount Type: Threaded
Make Model Year
Audi Allroad Quattro 2001-2005

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
4Z7616051 Audi
4Z7616051B Audi
4Z7616051D Audi
