11803

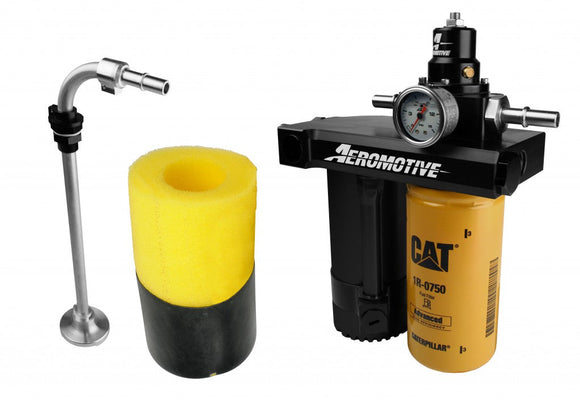

P/N 11803: 01-10 Duramax Diesel Retrofit Kit
This kit is designed to replace an existing aftermarket diesel lift pump equipped with 1/2in lines
Includes:
1 ea Fuel Pump Assembly (130gph)
1 ea ½ Suction Hose Assembly
1 ea Frame Bracket 1
1 ea Frame Bracket 2
2 ea 2 Bracket Spacers
3 ea 3/8-16 x 4 Hex Head Bolt
2 ea 3/8-16 x 3 Tapered Socket Cap Screw
3 ea Zinc Plated Lock Washer
1 ea Pump Power Harness
4 ea P/N 15129 AN10 to ½ J2044 Quick Connect
1 ea P/N 15131 AN12 to ½ J2044 Quick Connect
1 ea 15632 0-15psi, 1/8 npt, Fuel Pressure Gauge
3 ea 3/8-16 Zinc Plated Jam nut
4 ea AN-10 o-ring
1 ea AN-12 o-ring
1 ea P/N 12324 100 micron pre-filter
Installation Instruction: View Here
