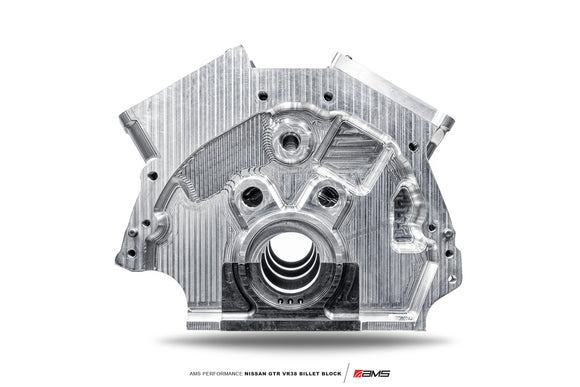

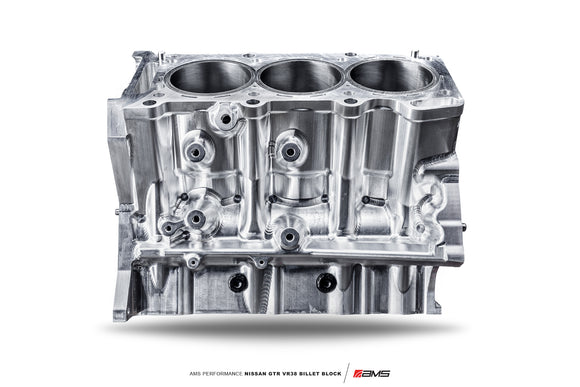

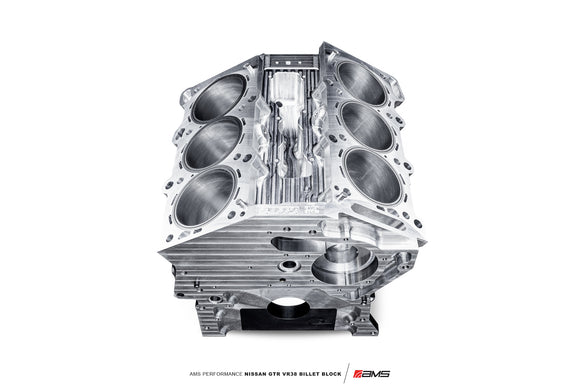

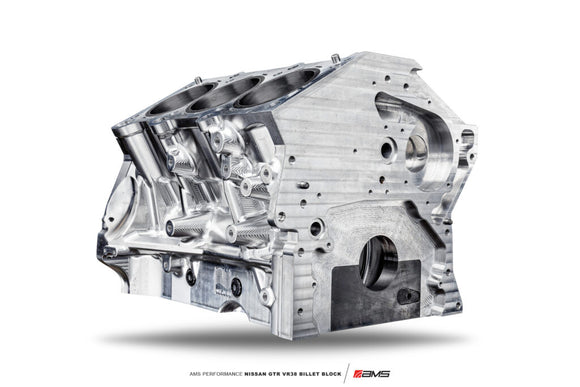

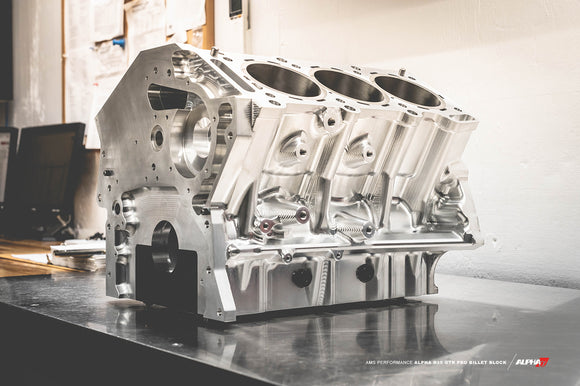

AMS Performance R35 GT-R CNC Billet VR38 Engine Block. Fully machined including ductile iron sleeves. Ready for Final Machining Finishing

ALP.07.04.0101-3

We have successfully applied our race-winning experience to the R35 GT-R’s VR38 V-6 to bring you the pinnacle of GT-R engine blocks. Introducing the AMS R35 GT-R Pro Series Billet Block! By developing our own aerospace-grade billet block we have engineered the strongest, most advanced block ever created for your GT-R. And, we have set the world records to back it up. When looking for the ultimate engine block for your GT-R look no further than AMS Performance.

• Fully Machined Bare Block ready for installation of the rotating assembly of your choice

• Aerospace-Grade 2219-T852 Billet Aluminum Construction offering exceptional thermal stability, high strength, ductility, weldability, and corrosion resistance

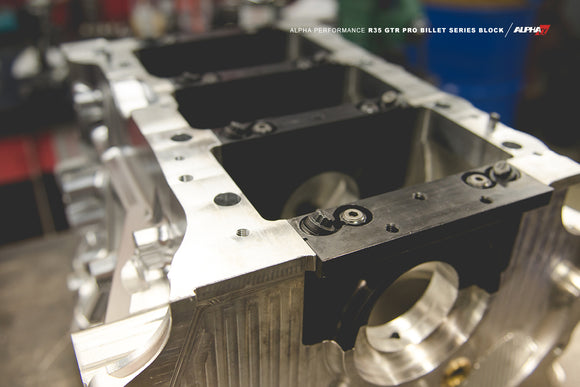

• 4140 Alloy Steel Main Caps with Splayed Bolts providing superior load distribution and crankshaft control under extreme power

• Skirted Block Design with Extra-Thick Cylinder Walls increasing bottom-end rigidity and resistance to extreme cylinder pressure

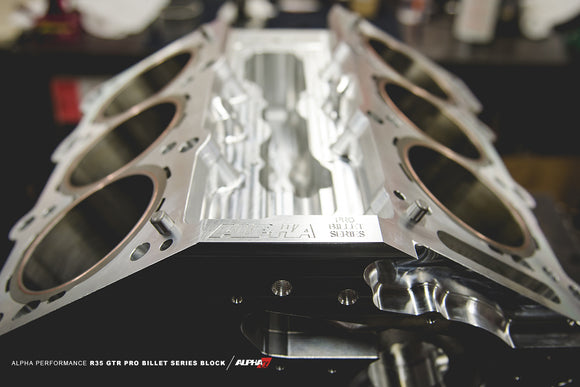

• Custom Ductile Iron Sleeves engineered for superior ring sealing and long-term durability

• 4.0L / 98mm Standard Bore with custom bore options available upon request

• Made in America – Designed, Material Sourced, Machined, and Manufactured all in the USA

Unmatched Construction

When AMS Engineers started exploring the concept of creating the ultimate GT-R block they had two primary goals: 1. It had to be able to handle the most power ever produced by a GT-R, and 2. It had to make that power reliably. Our Engineers chose billet aluminum because of its superior strength and excellent ductility. Each block is CNC machined in America from one solid piece of billet aluminum. Unlike common billet alloys (such as 6061 or 7075, which are optimized for ease of machining), aerospace-grade 2219-T852 aluminum offers significantly better strength retention at elevated temperature, superior resistance to thermal fatigue, and long-term dimensional stability — making it worth the higher material and manufacturing investment for extreme power applications. This material’s ability to withstand the extreme pressures and heat produced by 3000+ horsepower is unmatched.

The Pinnacle of Performance

The AMS Performance R35 GT-R Billet Block is simply the best. Whether it is in the world’s first 6 second GTR, ALPHA G, or the most celebrated street car ever, and back to back “King of the Streets” Champion, the AMS ALPHA Omega, our VR38 R35 billet block is the centerpiece of winning. The block features alloy steel main caps with splayed bolts for better load distribution and skirted block design for the highest levels of crankshaft support. The cylinders feature custom designed ductile iron sleeves and extra thick walls to withstand extreme cylinder pressures, allowing for an increase to 4.0 liters of displacement. This increase in displacement allows for quicker spool times and better low end torque over the standard 3.8 liter factory engine. If you are building a Nissan GT-R to compete against the world’s best then the AMS Performance VR38 R35 GT-R Pro Billet Series Block is where to start.

Ultimate in Efficiency

At the power levels this block is capable of producing, extreme heat can rob the engine of horsepower. This is where the billet aluminum block material comes into its own. Billet aluminum’s excellent thermal dimensional stability can take all the heat that you can throw at it and asks for more. We’ve always prided ourselves on having a tried and true engine program. Our engines have powered many of the world’s fastest R35 GT-R’s, with 6 second quarter mile passes becoming a regular occurrence. The AMS Performance VR38 R35 GT-R Pro Billet Series Block upgrade is what you need if making extreme power is your goal.

Applications

• 2009-2011 (CBA) Nissan R35 GT-R
• 2012+ (DBA) Nissan R35 GT-R
• Fits all USDM, JDM, Gulf Spec, and European Models (LHD & RHD)
