The AMS Performance Gearworks Stage 5 Transmission Upgrade for the DL800 is an ideal choice for Audi R8 and Lamborghini Huracan builds producing between 1200 and 1600 WHP. Purpose-built for high-powered twin-turbo applications, the Stage 5 transmission delivers confidence and durability when pushing your supercar to its limits at the track. Our AMS Gearworks team employs the Dodson Promax clutch kit, featuring billet baskets and a multi-plate clutch pack, to provide superior engine torque handling. With options for 9/9, 10/10, or 12/12 Dodson clutch packs, the Promax offers exceptional torque holding capacity for the DL800 while preserving smooth drivability and a refined driving experience. The Stage 5 package also includes a complete 1-7 billet gear and shaft set from Dodson, addressing critical weak points under high power. Proprietary AMS Gearworks modifications further enhance reliability, reinforcing critical oiling system components to ensure durability and resilience under high-stress racing conditions. Additional upgrades include Dodson Half Shafts, a Billet Pan and Filter, and the AMS Reinforced Differential Cover and Transmission Brace, providing essential strength and performance for the drag strip.
The AMS Gearworks Difference

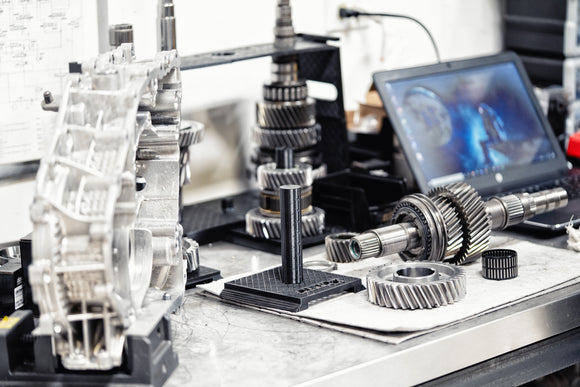

Finding expert technicians to handle the intricate process of building a 7-speed DL800 Dual Clutch Transmission (DCT) is no small task, which is why AMS has createdAMS Gearworks, a division dedicated exclusively to advanced transmission services. Combining decades of high-performance automotive expertise with a track record of breaking world records and winning motorsport championships, AMS Gearworks sets a new standard in drivetrain excellence. Offering gearbox building services alongside its award-winning ALPHA performance packages, AMS ensures every transmission is handled with precision and care, all within a single, state-of-the-art facility. From sophisticated OEM Audi/Lamborghini ODIS diagnostic software, to ultrasonic cleaning hardware, the AMS Gearworks team has the tools and the talent needed to get the job done. With unparalleled expertise, comprehensive logistics, and a commitment to quality, AMS Gearworks delivers the ultimate transmission servicing experience for the DL800 platform.
The Dodson Promax Multi-Plate Clutch Kit
Stepping up from a standard “street” clutch solution, the Dodson Promax clutch assembly is a complete unit with a full billet housing, making it nearly bombproof. At the heart of this clutch system are upgraded friction disks and steels, available as packs of 9/9, 10/10, or 12/12. This comprehensive design also includes machined billet high-grade hardened baskets, and a high-grade billet steel lid and splines with a billet turned cover. If you’re looking for the best clutch upgrade available for the DL800 transmission in your high horsepower R8 or Huracan, look no further.
Dodson Billet Full 1-7 Billet Gear Set
If you’re making big horsepower on your R8 or Huracan, one of the best upgrades you can do is replacing the factory gears with a billet set. Dodson tasked their engineering team with developing a complete billet machined 1-7 gear set, including shafts. These full billet gears offer vastly increased strength over the factory gears to greatly reduce the chance of tooth failure.
Included AMS & Dodson Billet Upgrades
Adding some much needed shiny aesthetics to your gearbox is a plus, but make no mistake – these pieces add some very usable features and additional strength to your transmission as well. The AMS Reinforced Differential Cover & Transmission Brace replaces the factory cover with a fully gusseted billet aluminum piece, and three integrated billet braces for additional reinforcement across the transmission case. This added stiffness helps strengthen the gearbox case to prevent flexing that can misalign the gears, shafts and other components inside. In addition to improving case rigidity, the Dodson Billet Sump Pan provides for a replaceable upgraded oil filter element, instead of the non-serviceable stock pan/filter. It has been designed to reduce aeration in the oil before entering the oil filter and increase heat dissipation, helping to keep your transmission running at cooler temperatures.
Putting the Power Down
One of the most severe use cases for a transmission will always be drag racing, and specifically the act of launching the car from a complete stop on a sticky track surface. This is why we add both the Wavetrac Rear Limited Slip Differential upgrade and Dodson Half Shafts to every Stage 5 build. The Dodson short and long half shafts are extra strong replacements of the factory shafts to better cope with the loads associated with high horsepower drag racing so you don’t have to worry if the stock shafts will leave you stranded at the track. In addition to these shafts, we add the Wavetrac LSD for exceptional traction during hard acceleration, as well as increased reliability over the OEM unit. Simply put, if you plan on doing any kind of racing with your R8 or Huracan, these are must-have additions.
Titanium and Billet Aluminum Upgrades for Future Servicing
The AMS Gearworks Stage 5 DL800 Transmission is fortified with key components that prioritize preventative maintenance, ensuring long-term reliability and performance. The Dodson Billet Trans Pan enhances oil flow and reduces aeration while improving heat dissipation, helping to maintain optimal transmission temperatures and preventing overheating in high-stress conditions. The AMS Performance Titanium Bolt Kit mitigates the risk of oil leaks by replacing the stretch-prone OEM hardware with reusable aerospace-grade titanium and chromoly steel bolts, providing a secure seal that withstands repeated servicing. Additionally, the AMS Billet Filter Housing eliminates the vulnerability of the OEM plastic design, with its durable 6061 aluminum construction and leak-resistant Viton O-ring seal. This design also allows for transmission fluid filter changes, whereas the OEM pan and filter is entirely non-serviceable. Together, these upgrades proactively address common wear points, minimizing the likelihood of costly repairs and keeping your transmission running smoothly.
Transportation & Logistics
As part of our AMS Gearworks DL800 build program, we offer a range of transport logistics options to make the upgrade process as seamless as possible. For customers who prefer to handle the gearbox removal themselves, we provide convenient shipping solutions to ensure safe and efficient delivery of your gearbox to our facility, where our expert technicians can begin the custom build. However, if you’d rather leave the entire process to us, we can arrange for full vehicle transport, providing a true door-to-door service. This option allows our team to take full responsibility for every aspect of the upgrade, from safely transporting your vehicle to our facility, to meticulously handling the gearbox removal, build, and reinstallation, and finally delivering your fully upgraded vehicle back to you. With either option, AMS Gearworks prioritizes security, efficiency, and convenience, giving you complete peace of mind and allowing you to focus on enjoying your V10 supercar.
Stage 5 Build Includes
Comprehensive AMS Gearworks Disassembly, Inspection, Cleaning, and Assembly Service
Full Disassembly and Inspection of the Transmission / Clutch Assembly
Inspect and Identify Worn or Damaged Components
Visual Inspection of Mechatronic Unit
Digital and Physical Fork Position Check
Dodson Billet 1-7 Complete Gear Set w/ Billet Input Shafts
Dodson Mechanical Circlip Odd Input Shaft Upgrade
Dodson Pinion Nut Upgrade
Dodson Input Shaft Speed Sensors
Dodson Pro Max Upgrade with Billet Aluminum Cover and Billet Steel Drive Gear
Dodson Billet Steel A and B Baskets
Condition and Blueprint Dodson 9/9 Clutch Assembly (or 10/10, or 12/12)
Dodson 300m Billet Half Shafts
Dodson Billet Transmission Pan w/ Serviceable Filter
Wavetrac Rear Differential (Includes New Bearings and all Necessary Shims)
AMS Performance Reinforced Differential Cover and Transmission Brace
ALP.37.03.1005-1– Dodson Billet Ring and Pinion 45/17
ALP.37.03.1005-2– Dodson Billet Ring and Pinion 41/17
ALP.37.03.1005-3– Dodson Rear Billet Drop Gear and Output Shafts
ALP.37.03.1005-4– Dodson Forward Billet Drop Gear and Output Shafts for 45/17 Ring and Pinion
ALP.37.03.1005-5– Dodson Forward Billet Drop Gear and Output Shafts for 41/17 Ring and Pinion
ALP.37.03.1005-6– Dodson Forward Billet Drop Gear and Output Shafts for 41/17 Ring and Pinion (Race Spec Front Overdrive)
Product Notes
Quoted pricing applies to builds using serviceable core components. If any internal or external transmission components are found to be worn, damaged, or beyond serviceable limits during inspection, additional charges may apply for replacement parts and labor. AMS will provide a detailed estimate for customer approval before proceeding with any additional repairs.
