Artec Industries Jmx Pro 3-Piece Teflon Lined 7/8 In Rod End W/ 3/4 In Bore Right Hand (Standard)

Artec Industries Jmx Pro 3-Piece Teflon Lined 7/8 In Rod End W/ 3/4 In Bore Right Hand (Standard)

$50.81 CAD

Artec Industries SKU: artJMX12-14R

Description Availability

JMX12-14R

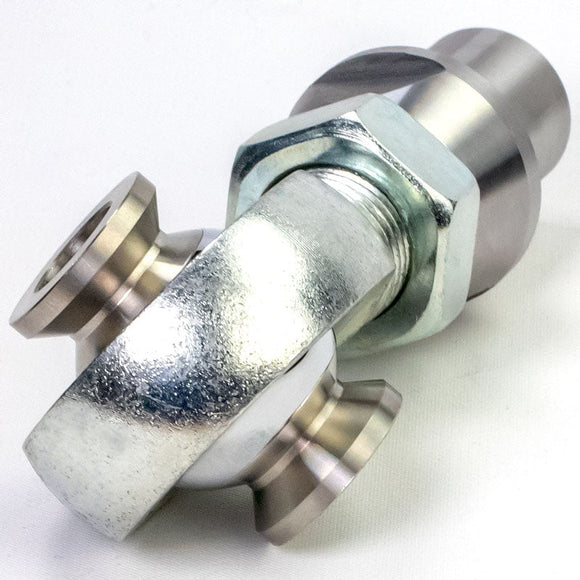

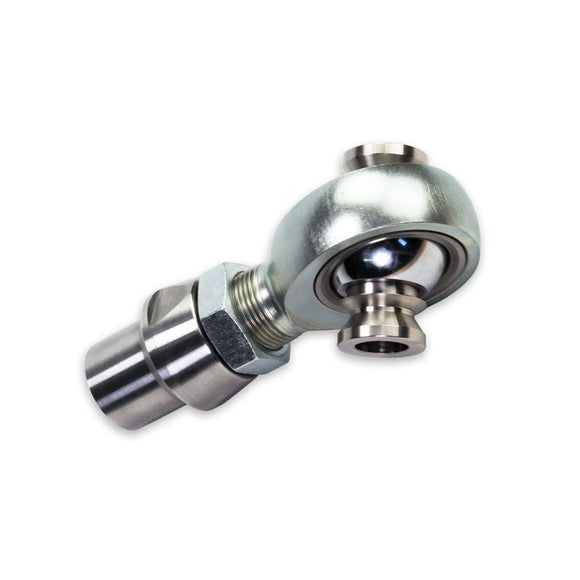

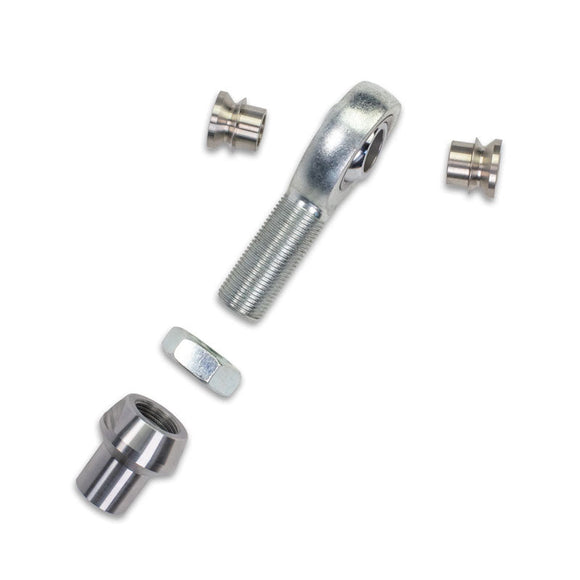

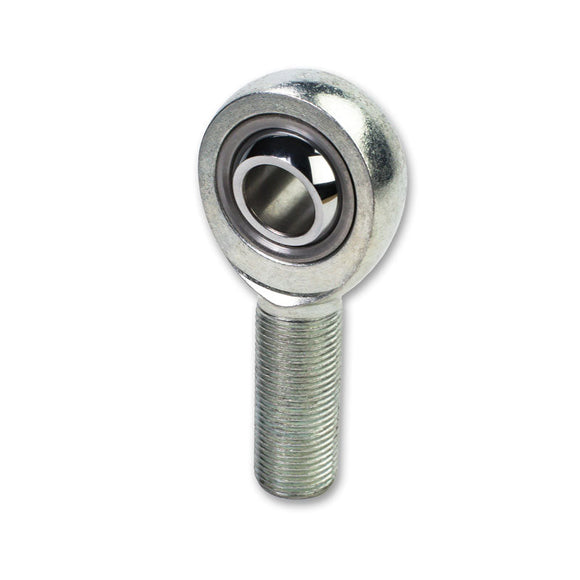

MX PRO Rod End for the Ultimate in Strengthand Longevity.

 These rod ends are the best way to add strength, reliability,and flexibility to any situation that requires use of a rod end such as insuspension or steering applications. The JMX series utilizes a highstrength Heat treated 4130 Chromoly body with a silver zinc finish with asmooth PTFE (Teflon) liner for smooth operation. The ball is made from heattreated bearing steel for strength and hard chrome polished for a smoothsurface. The race is a heat treated alloy steel which means this joint willoutlast a normal budget rod end with injection molded race. The JMX series withTeflon lining keeps the joint quiet and tight for years and years of usability.
7/8" -14 tpi thread with 3/4" bore.
Approximate Ultimate Radial Static Load (lbs) 55,692.



Part Number





System





Thread





A





G





H





J





M





N





a°





Ultimate Radial Static Load (lbs)





Material





JMX12-14

Inch





7/8-14





0.750

3.375





2.000

1.875





0.765

0.875





24.0°





55,692

Chrome Moly
