Remanufactured Air Strut Front 07-13 Mercedes-Benz S-Class (W221) - w/AIRMATIC & ADS, w/o 4MATIC AS-2785 Air Strut Front Right 03-09 Mercedes-Benz E-Class (W211), 05-11 CLS-Class (W219) - w/AIRMATIC & ADS, w/o 4MATIC, Excl. AMG

Remanufactured Air Strut Front 07-13 Mercedes-Benz S-Class (W221) - w/AIRMATIC & ADS, w/o 4MATIC AS-2785 Air Strut Front Right 03-09 Mercedes-Benz E-Class (W211), 05-11 CLS-Class (W219) - w/AIRMATIC & ADS, w/o 4MATIC, Excl. AMG

$1,110.00 CAD

Shipping calculated at checkout

Arnott SKU: AS-2540

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2540

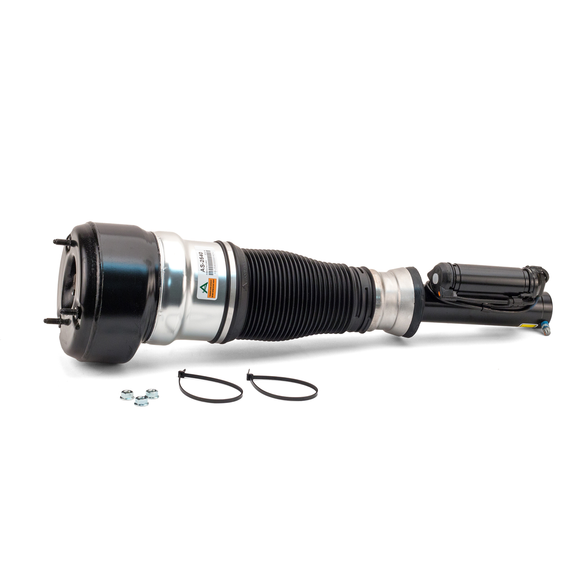

Remanufactured Air Suspension Strut

Arnotts completely rebuilt OE front air struts for the Mercedes-Benz feature a new rubber air spring bladder manufactured by Continental ContiTech. Arnott improved the upper seal design, using an O-ring sealing technology rather than the original epoxy design that cracked, causing leaks and other damage. The price per strut at your local dealership is a small fortune! Once again, the Arnott design is not only more efficient, its also much more affordable!

  • Remanufactured and Tested in the USA
  • Improved Upper Seal Design
  • New Rubber Air Spring Bladder
  • O-ring Sealing Technology
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: Yes
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Bolt
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: Remanufactured
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz S350 2011-2013
Mercedes-Benz S400 2010-2013
Mercedes-Benz S500 2007-2011, 2013
Mercedes-Benz S550 2007-2013
Mercedes-Benz S600 2007-2013
Mercedes-Benz S63 AMG 2008-2013
Mercedes-Benz S65 AMG 2007-2013

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
2213204913 Mercedes-Benz
2213205113 Mercedes-Benz
2213207313 Mercedes-Benz
2213209313 Mercedes-Benz
221320931380 Mercedes-Benz
