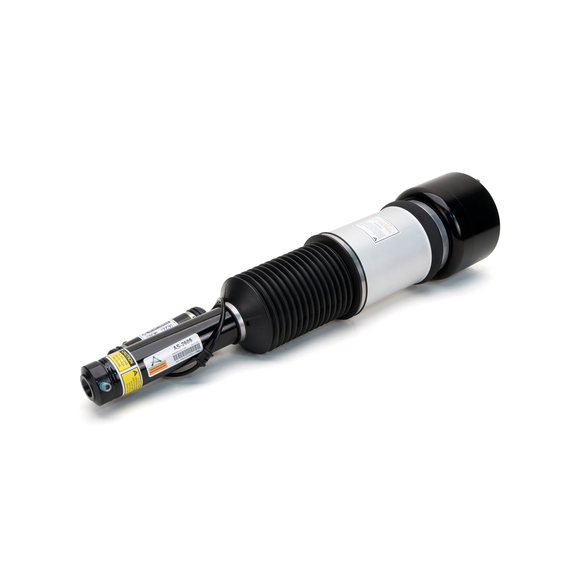

Air Strut Front 00-06 Mercedes-Benz S-Class (W220) - w/AIRMATIC & ADS, w/o 4MATIC

Air Strut Front 00-06 Mercedes-Benz S-Class (W220) - w/AIRMATIC & ADS, w/o 4MATIC

$872.40 CAD

Shipping calculated at checkout

Arnott SKU: AS-2605

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2605

New Air Suspension Strut

Arnott part AS-2605 is a new, not remanufactured, aftermarket front strut assembly for the Mercedes Benz 1999-2006 W220 S-Class Sedan with AIRMATIC and without 4MATIC. This replacement strut, designed and assembled in the USA, features a new custom-valved shock absorber assembled with a durable new Continental ContiTech rubber air spring bladder. The strut is protected by an aluminum can and dust baffle to keep out debris and is assembled with heavy-duty crimping rings, seals, O-Rings, bump stop and connector valve. There is no core deposit required on this new Arnott-designed strut. Features: Custom-Valved Shock Absorber Pre-Assembled for Easy Installation Engineered and Assembled in the USA Durable ContiTech Air Bladder Detailed Instruction Manual and Video Available

  • Pre-Assembled for Easy Installation
  • Engineered & Assembled in the USA
  • Durable ContiTech Air Bladder
  • Detailed Instruction Manual & Video Available
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Bolt
Lower Mounting Isolator Included: No
Mounting Hardware Included: No
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz S350 2006
Mercedes-Benz S430 2000-2006
Mercedes-Benz S500 2000-2006

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
2203202438 Mercedes-Benz
220320243880 Mercedes-Benz
2203205113 Mercedes-Benz
