Air Strut Front 10-13 Land Rover Range Rover Sport (L320) - Supercharged Only, w/VDS/CVD

Air Strut Front 10-13 Land Rover Range Rover Sport (L320) - Supercharged Only, w/VDS/CVD

$931.20 CAD

Shipping calculated at checkout

Arnott SKU: AS-2761

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2761

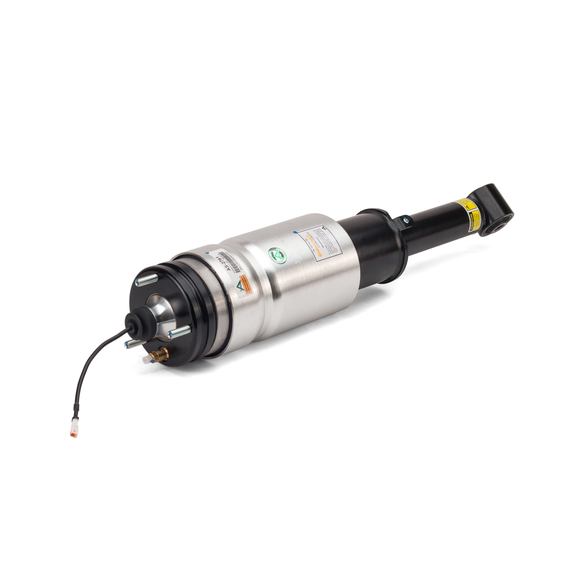

New Air Suspension Strut

The Arnott designed new front strut for the 2010-2013 Range Rover Sport (Supercharged), part AS-2761, is new and not remanufactured. Arnott’s exclusive design features a new custom-tuned shock absorber valved to provide a great ride. This new strut is assembled in the USA with a multi-ply air ContiTech air bladder. The strut assembly also features extra-heavy duty crimping rings, new seals, bump stop, air fitting and check valve along with a black anodized aluminum top. Arnott protects the assembly with an aluminum can to keep out debris.

  • ContiTech Multi-Ply Air Bladder
  • Black Anodized Aluminum Top
  • Heavy-Duty Crimping Rings
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover Sport 2010-2013

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
44-232726 Land Rover
LR018190 Land Rover
LR019993 Land Rover
LR032647 Land Rover
LR052866 Land Rover
