Air Strut Front Left 04-10 Audi A8 (D3) - w/o Sport Suspension AS-2892 Air Strut Front Right Phaeton (D1)

Air Strut Front Left 04-10 Audi A8 (D3) - w/o Sport Suspension AS-2892 Air Strut Front Right Phaeton (D1)

$1,404.00 CAD

Arnott SKU: AS-2776

Description Availability

AS-2776

New Air Suspension Strut

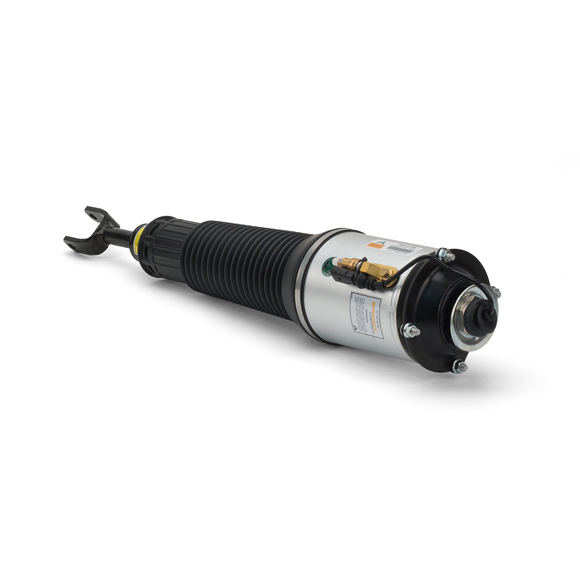

AS-2776 is a new, Arnott engineered, aftermarket air suspension strut for the front of the 2002-2009 Audi A8 (D3 Chassis) with Normal (Non-Sport) Suspension. This new assembly replaces the O.E. strut and features a new custom tuned shock absorber calibrated to restore your vehicles original ride control and performance. The Arnott strut includes a new air bladder from ContiTech protected by an aluminum can along with a CNC machined top mount made from aircraft quality aluminum. This new air strut is assembled in the USA with Arnotts long lasting seals, O-rings, bump stop, heavy duty crimping rings, new air fitting and connector valve along with a dust boot to protect the strut.

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Audi A8 Quattro 2004-2010

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-241994 Audi
4E0616039AB Audi
4E0616039AF Audi
4E0616039AH Audi
4E0616039R Audi
4E0616039T Audi
