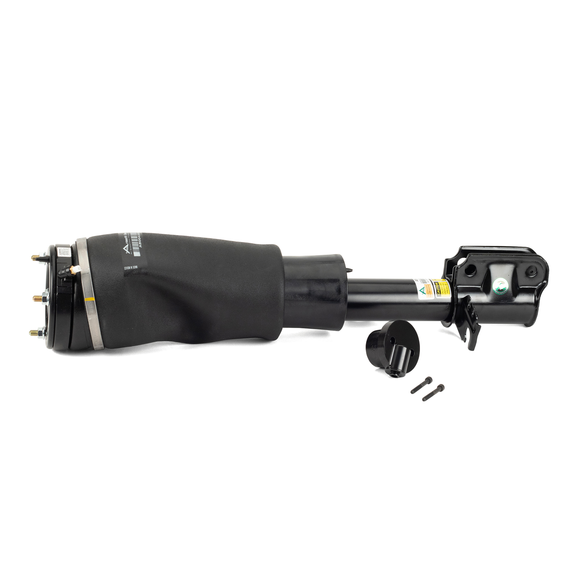

Air Strut Front Right 10-12 Land Rover Range Rover (L322) - w/VDS/CVD, HSE or Supercharged

Air Strut Front Right 10-12 Land Rover Range Rover (L322) - w/VDS/CVD, HSE or Supercharged

$1,651.20 CAD

Shipping calculated at checkout

Arnott SKU: AS-2797

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2797

New Air Suspension Strut

The Arnott designed new Front Right strut AS-2797 for the 2010-2012 Range Rover, is new and not remanufactured. Arnotts exclusive design features a new custom-made and tuned shock absorber valved to ride like the O.E. and is assembled in the USA with a multi-ply, name brand, air spring bladder. The strut assembly also features extra-heavy duty crimping rings, new seals, air fitting and stamped steel top.

  • Exclusively for Range Rover
  • Name Brand Multi-Ply Air Bladder
  • Maintains Auto-Leveling Functionality
  • Heavy-Duty Crimping Rings
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Bracket
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover 2010-2012

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
45-240706 Land Rover
LR012859 Land Rover
LR012860 Land Rover
LR032560 Land Rover
