Air Strut Front 06-11 Mercedes-Benz ML-Class (W164) - w/AIRMATIC & ADS, ML63 AMG Only

Air Strut Front 06-11 Mercedes-Benz ML-Class (W164) - w/AIRMATIC & ADS, ML63 AMG Only

$1,168.80 CAD

Arnott SKU: AS-2802

Description Availability

AS-2802

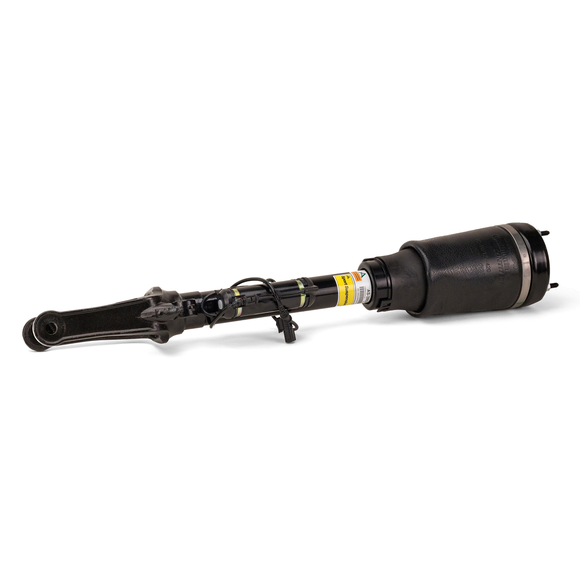

New Air Suspension Strut

AS-2802 is a new, not remanufactured, Arnott air suspension strut for the front left or right of the 2006-2011 Mercedes-Benz ML-Class (W164 Chassis) ML 63 AMG. This new assembly replaces the O.E. strut and features a custom tuned shock absorber calibrated to restore your vehicles original ride control and performance. The Arnott strut includes a new air bladder from ContiTech and is assembled in the USA with Arnotts long lasting seals, O-rings, bump stop, heavy duty crimping rings, new air fitting and connector valve. Features: New Custom Valved Shock Absorber Multi-Ply ContiTech Air Spring Bladder Pre-Assembled for Easy Installation Detailed Installation Manual Available

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz ML63 AMG 2007-2011

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1643202213 Mercedes-Benz
1643205213 Mercedes-Benz
164320521380 Mercedes-Benz
44-146108 Mercedes-Benz
