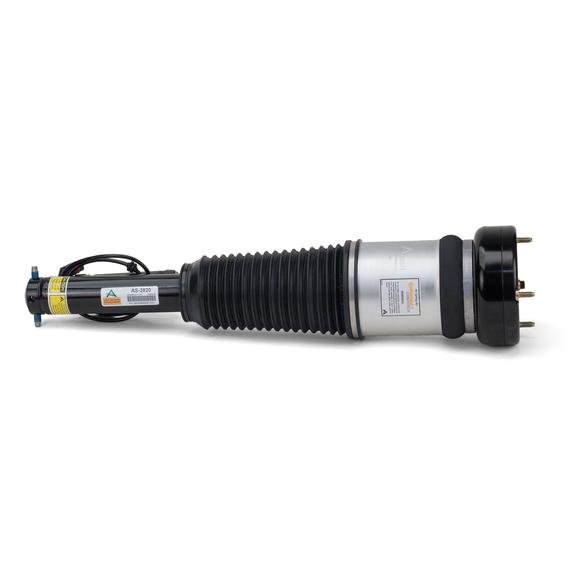

Air Strut Front 07-13 Mercedes-Benz S-Class (W221) - w/AIRMATIC & ADS, w/o 4MATIC

Air Strut Front 07-13 Mercedes-Benz S-Class (W221) - w/AIRMATIC & ADS, w/o 4MATIC

$1,400.40 CAD

Shipping calculated at checkout

Arnott SKU: AS-2820

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-2820

Suspension Strut Assembly

New Air Suspension Strut

AS-2820 is a new, not remanufactured, aftermarket air suspension strut for the front of the 2007-2013 Mercedes-Benz S-Class W221 Chassis with AIRMATIC and w/o 4MATIC. This replacement strut, designed and assembled in the USA, features a new custom-valved shock absorber assembled with a durable new Continental ContiTech rubber air spring bladder and no lower isolator seal which is subject to failure on the O.E. The strut is partly protected by an aluminum can and dust baffle to keep out debris and is assembled with heavy-duty crimping rings, seals, O-Rings and bump stop. This fully assembled air strut plugs directly into the vehicle’s electronic connector and eliminates fault codes.

  • Multi-Ply ContiTech Air Spring Bladder
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual
  • Designed & Assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Bolt
Lower Mounting Isolator Included: Yes
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz S350 2011-2013
Mercedes-Benz S400 2010-2013
Mercedes-Benz S500 2007-2011, 2013
Mercedes-Benz S550 2007-2013
Mercedes-Benz S600 2007-2013
Mercedes-Benz S63 AMG 2008-2013
Mercedes-Benz S65 AMG 2007-2013

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
2213204913 Mercedes-Benz
2213205113 Mercedes-Benz
2213207313 Mercedes-Benz
2213209313 Mercedes-Benz
221320931380 Mercedes-Benz
