Remanufactured Air Strut Front Left 13-19 Mercedes-Benz GL/GLS-Class (X166), 12-18 ML/GLE-Class (W166) - w/ADS (Excl. ADS+) AS-3175 Air Strut Rear Oct 16 - Feb 21 Tesla Model X

Remanufactured Air Strut Front Left 13-19 Mercedes-Benz GL/GLS-Class (X166), 12-18 ML/GLE-Class (W166) - w/ADS (Excl. ADS+) AS-3175 Air Strut Rear Oct 16 - Feb 21 Tesla Model X

$1,220.40 CAD

Shipping calculated at checkout

Arnott SKU: AS-3061

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3061

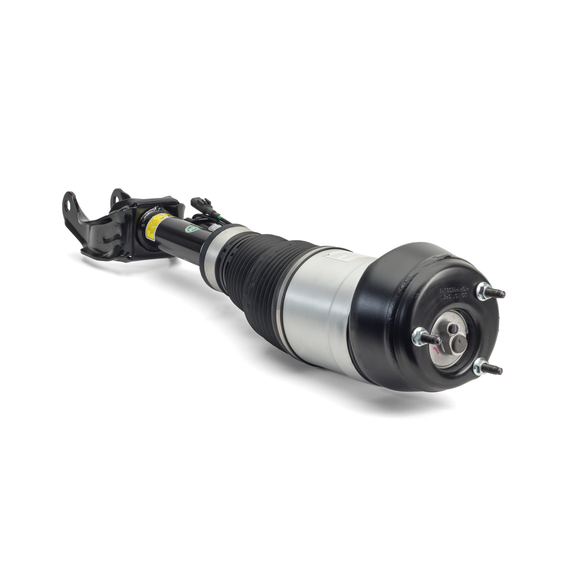

Remanufactured Air Suspension Strut

Arnott part AS-3061 is a completely remanufactured O.E. strut for the front left side of the 2013-2019 Mercedes-Benz non-AMG GL/GLS-Class (X166 chassis) and 2012-2018 ML/GLE-Class (W166 chassis) with ADS. Each Mercedes strut is painstakingly tested, disassembled, cleaned, recharged, painted and rebuilt from the ground up. The Arnott remanufactured strut features a new multi-ply rubber air bladder manufactured by Continental ContiTech along with heavy duty crimping rings, new O-Rings, bump stop, bottom seal, wiring harness and air line fitting. The Arnott remanufactured strut design is not only more efficient, but it’s also much more affordable! All Arnott remanufactured struts are designed to work with the vehicle’s Adaptive Damping System (ADS) and Auto Leveling functionality.

  • Remanufactured and Tested in the USA
  • Maintains Adaptive Damping System Functionality
  • Detailed Installation Manual Available
  • Pre-Assembled for Easy Installation
  • Replace in Pairs
Adjustable Compression: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: Remanufactured
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz GL350 2013-2016
Mercedes-Benz GL450 2013-2016
Mercedes-Benz GL500 2013-2015
Mercedes-Benz GL550 2013-2016
Mercedes-Benz GLE300d 2016-2017
Mercedes-Benz GLE350 2016-2019
Mercedes-Benz GLE400 2016-2019
Mercedes-Benz GLE500 2016-2019
Mercedes-Benz GLE500e 2018-2019
Mercedes-Benz GLE550 2016-2018
Mercedes-Benz GLE550e 2016-2018
Mercedes-Benz ML250 2015
Mercedes-Benz ML350 2012-2015
Mercedes-Benz ML400 2015
Mercedes-Benz ML500 2012-2015
Mercedes-Benz ML550 2012-2015

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1663201313 Mercedes-Benz
1663205166 Mercedes-Benz
166320516680 Mercedes-Benz
1663205366 Mercedes-Benz
166320536660 Mercedes-Benz
166320536680 Mercedes-Benz
1663205566 Mercedes-Benz
166320556680 Mercedes-Benz
1663206713 Mercedes-Benz
1663206913 Mercedes-Benz
1663207113 Mercedes-Benz
44-273439 Mercedes-Benz
