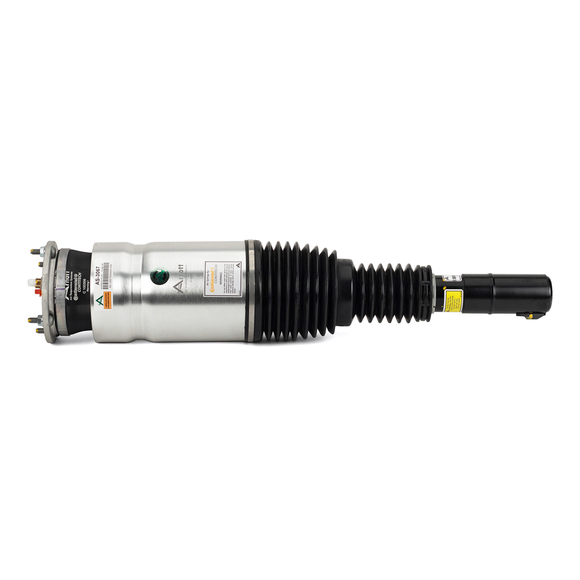

Remanufactured Air Strut Front Right 13-22 Land Rover Range Rover (L405) - w/VDS/CVD

Remanufactured Air Strut Front Right 13-22 Land Rover Range Rover (L405) - w/VDS/CVD

$951.60 CAD

Shipping calculated at checkout

Arnott SKU: AS-3067

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3067

Remanufactured Air Suspension Strut

Arnotts AS-3067 is a completely remanufactured O.E. front right strut for the 2013-2022 Land Rover Range Rover L405 Chassis. Each Land Rover strut is painstakingly tested, disassembled, cleaned, recharged, painted and rebuilt from the ground up. The Arnott remanufactured strut features a new multi-ply rubber air bladder manufactured by Continental ContiTech along with dust boots, protective aluminum can, heavy duty crimping rings, O-Rings, and new air fitting. The Arnott remanufactured strut design is not only more efficient, but it’s also much more affordable! All Arnott remanufactured struts are designed to work with the vehicle’s auto leveling suspension controls.

  • Remanufactured and Tested in the USA
  • Pre-Assembled for Easy Installation
  • Detailed Installation Manual Available
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: Yes
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: No
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Gas Charged: Yes
Internal Damper Type: Hydraulic
Lower Mount Type: Base Cup
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: Remanufactured
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Land Rover Range Rover 2013-2022

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
LR038801 Land Rover
LR038803 Land Rover
LR052774 Land Rover
LR057251 Land Rover
LR060135 Land Rover
LR072447 Land Rover
LR087081 Land Rover
