Air Shock Rear 04-10 Infiniti QX56 (JA60), 05-15 Nissan Armada (WA60) - 4WD Only AS-3370 Remanufactured Air Strut Front Right 16-21 BMW 7 Series (G11/G12) - RWD

Air Shock Rear 04-10 Infiniti QX56 (JA60), 05-15 Nissan Armada (WA60) - 4WD Only AS-3370 Remanufactured Air Strut Front Right 16-21 BMW 7 Series (G11/G12) - RWD

$256.80 CAD

Shipping calculated at checkout

Arnott SKU: AS-3284

<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>
Description Availability

AS-3284

New Air Suspension Shock

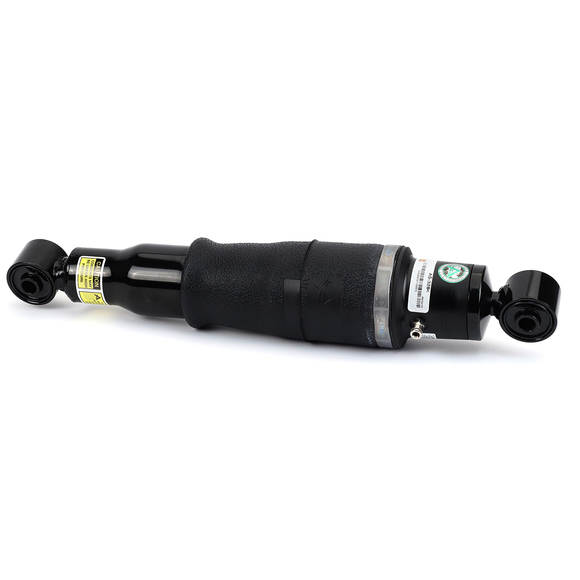

AS-3284 is a new, Arnott engineered, aftermarket air assisted shock for the Rear of the 2004-2010 Infinity QX56 (JA60) and Nissan Armada (WA60) 4WD only. This new assembly features a custom-tuned damper which provides an OE like ride along with a cross-hatch, multi-ply, ContiTech air sleeve designed to provide a long service life. The Arnott shock is built with Tier 1 components including heavy duty crimping rings, long lasting seals and a 5 MM push-to-connect airline fitting. This universal rear air assisted shock, which fits the Left or Right side, is designed and assembled in the USA.

  • Multi-Ply ContiTech Air Sleeve
  • Detailed Installation Manual Available
  • Designed & Assembled in the USA
  • Universal Shock Fits Left or Right Side
  • Replace in Pairs
Adjustable: No
Air Adjustable: Yes
Air Bladder: Yes
Air Bladder Material: Rubber
Air Ride Suspension: Yes
Bearing Plate Included: No
Body End Measuring Point: Center Eye
Boot Color: Black
Coil Over Springs Included: N/A
Compressed Length: 269.5 (mm)
Dust Shield Material: N/A
Extended Length: 400 (mm)
Grade Type: Standard
Heavy Duty Crimping Rings: Yes
Internal Construction Type: Twin-tube
Internal Damper Type: Hydraulic
Lower Mount Type: Loop/Eyelet
Mounting Hardware Included: No
Progressive Spring Rate: Progressive
Protective Aluminum Can: No
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: Yes
Travel Length: 130.5 (mm)
Upper Mount Type: Loop/Eyelet
Upper Mounting Isolator Included: Yes
Make Model Year
INFINITI QX56 2004-2010
Nissan Armada 2005-2015
