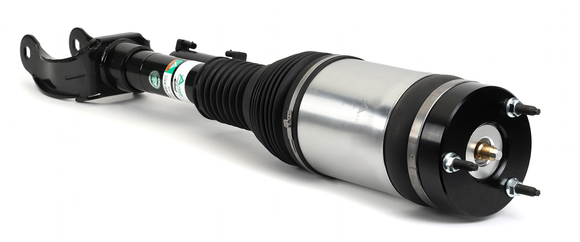

Air Strut Front Left 17-19 Mercedes-Benz GLS-Class (X166), 16-20 GLE-Class (W166) - w/ADS+, AMG ASE-4376 Electronic eRide Strut Front Left 11-18 Porsche Cayenne (92A)

Air Strut Front Left 17-19 Mercedes-Benz GLS-Class (X166), 16-20 GLE-Class (W166) - w/ADS+, AMG ASE-4376 Electronic eRide Strut Front Left 11-18 Porsche Cayenne (92A)

$2,980.80 CAD

Arnott SKU: AS-3594

Description Availability

AS-3594

New Air Suspension Strut

The Arnott designed new front left strut for the 2013-2020 Mercedes-Benz GL/GLS (X166) and 2013-18 ML/GLE (W166) with ADS Plus only, (including AMG), part number AS-3594, is new, not remanufactured. This assembly replaces the OE strut and features a new custom-tuned shock absorber to provide an excellent ride and outstanding performance. The Arnott strut is assembled in the USA with a multi-ply Continental ContiTech air spring sleeve protected by an aluminum can along with a CNC-machined top mount made from aircraft-quality aluminum. The new air strut is assembled in the USA with Arnotts long-lasting seals, O-rings, bump stop, heavy-duty crimping rings, new air fitting and connector valve along with a dust boot to protect the strut.

  • Converts active to passive
  • Continental ContiTech air spring sleeve
  • Premium shock absorber
  • Engineered and assembled in the USA
  • Replace in Pairs
Adjustable Compression: No
Adjustable Damping: No
Air Adjustable: Yes
Air Ride Suspension: Yes
Bearing Plate Included: Yes
Bladder Heavy Duty Crimping Rings Included: Yes
Body End Measuring Point: Center Eye
Boot Color: Black
Boot Included: Yes
Coil Over Springs Included: N/A
Internal Damper Type: Hydraulic
Lower Mount Type: Clevis
Lower Mounting Isolator Included: No
Mounting Hardware Included: Yes
New Or Remanufactured: New
Progressive Spring Rate: Yes
Shock Absorber Rod End Measuring Point: Shoulder of Stud
Shock Spring Assisted: Yes
Spring Isolators Included: Yes
Spring Rate Type: Progressive
Spring Seat Included: No
Springs Included: N/A
Upper Mount Type: Stud
Upper Mounting Isolator Included: Yes
Make Model Year
Mercedes-Benz GLE350d 2016
Mercedes-Benz GLE43 AMG 2017-2020
Mercedes-Benz GLE450 AMG 2016-2017
Mercedes-Benz GLE63 AMG 2016-2020
Mercedes-Benz GLE63 AMG S 2016-2019
Mercedes-Benz GLS350d 2017
Mercedes-Benz GLS450 2017-2019
Mercedes-Benz GLS500 2017, 2019
Mercedes-Benz GLS550 2017-2019
Mercedes-Benz GLS63 AMG 2017-2019

Interchange is provided as a reference. Please check part specifications to verify fit.
Reference Number Reference Name
1663200300 Mercedes-Benz
1663206766 Mercedes-Benz
2923202500 Mercedes-Benz
2923202700 Mercedes-Benz
2923203913 Mercedes-Benz
2923204513 Mercedes-Benz
