STMKIT-EODP-V10-R8GAL
Genuine OEM Audi/Lamborghini factory replacement engine oil drain plugs and washers for the V10 Lamborghini Gallardo and 2009-2015 Audi R8 V10 models. These are very hard to track down, so STM has taken the time to set up an easy kit to replace them all - or you can purchase them individually as needed.

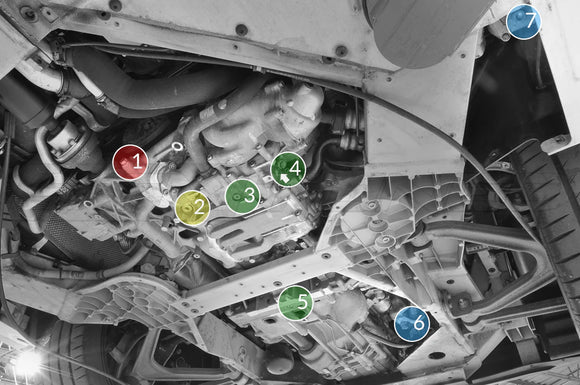

There are 4 different plugs and washers used in 7 different engine oil drain holes. Take a look at the table and diagram to figure out which plug goes where. A 2009 LP560-4 Gallardo is pictured for reference.
Vehicle Fitment:
2003-2013 Lamborghini Gallardo 5.2L V10
2009-2015 Audi R8 5.2L V10
| Diagram: | Part Numbers: |
| #1 | M14x1.5x12 Plug (N0297014) M14 Washer (N0138157) |
| #2 | M18x1.5x12 Plug (N0160293) M18 Washer (N0138326) |
| #3 | M10x1x10 Plug (N91119401) M10 Washer (N0138063) |
| #4 | |
| #5 | |
| #6 | M14x1.5x19 Plug (036103193) M14 Washer (N0138493) |
| #7 |
As always, please do additional research with your exact VIN to confirm part numbers.
