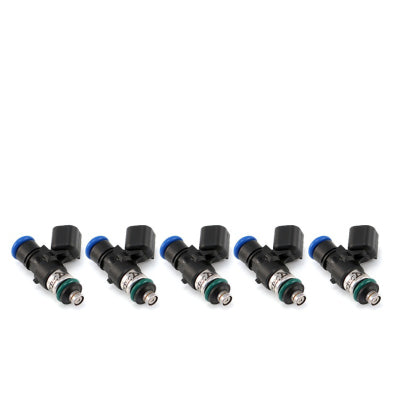

Audi RS3/TTRS Injector Dynamics ID1300 (Set of 5)

Audi RS3/TTRS Injector Dynamics ID1300 (Set of 5)

$1,759.99 CAD

Injector Dynamics SKU: idx1300.34.14.14.5

Description Availability

1300.34.14.14.5

Requires idx90.3 for plug and play connectors.

The ID1300x² is an all new injector, designed in partnership with Bosch Motorsport. This collaboration has given us the ability to design a high flow injector with characteristics specific to the needs of the motorsport tuner. The ID1300x² was designed with alternative fuels in mind, and was originally the only performance injector available with all stainless internals. It is compatible with all known fuels, and will stand up to the corrosive nature of alcohol better than any injector on the market.
While the ID1300x² was designed with an eye towards ethanol fueled engines, we have accounted for the occasional need to convert back to gasoline. The ID1300x² has a minimum fuel mass compatible with gasoline use, and will provide exceptional idle and cruise behavior under these conditions. In addition to its multi-fuel capabilities, the compact body of the ID1300x² allows fitment in 200+ applications, making it the most versatile injector in our lineup.


To learn more about the nature and development of this true motorsport injector and its siblings the ID1050x and ID1700x, follow this link.


Basic Specifications

Nominal Flow Rate – 1335cc/min @ 3.0 Bar (43.5 psi) Using Iso Octane at 52 Degrees C (125 Degrees F)
Maximum Differential Fuel Pressure – 7.0 Bar (101.5 psi)
Fuel Compatibility – Compatible With All Known Fuels – (Designed Specifically for Alternative Fuels)
Electrical Connector – USCAR

Audi RS3/TTRS

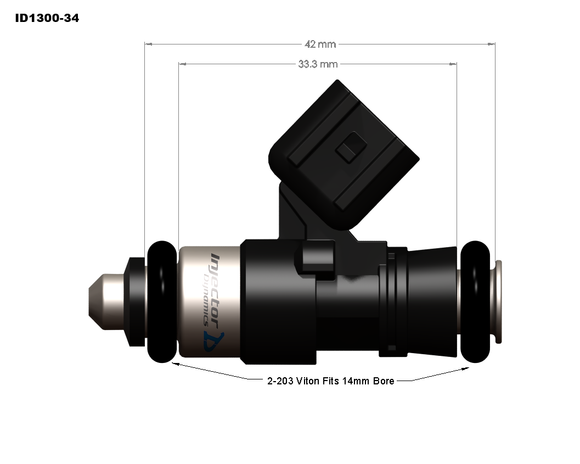

Most applications fall into one of four standard fitments consisting of two standard lengths, (48mm or 60mm) and 2 standard fuel rail bores (11mm, or 14mm) The 3D models pictured below give the relevant dimensions of these standard fitments.

ID1300-XDS Dynamic Flow Data

Fuel Pressure Offset Slope
(psid) (µsec) (cc/min)
8 Volts 10 Volts 12 Volts 14 Volts 16 Volts
40.0 2175 1575 1235 1020 855 1275
43.5 2230 1610 1255 1035 865 1335
45 2255 1620 1265 1040 870 1360
50 2350 1665 1290 1055 880 1440
55 2445 1715 1320 1070 895 1520
60 2535 1765 1355 1095 915 1590
65 2620 1830 1395 1125 935 1655
70 2705 1895 1445 1160 960 1715
75 2790 1955 1480 1185 975 1770
80 2875 2015 1510 1205 990 1820
85 N/A 2075 1540 1220 1005 1860
90 N/A 2135 1580 1250 1025 1895
95 N/A 2195 1625 1280 1050 1925
100 N/A 2250 1675 1320 1080 1950
