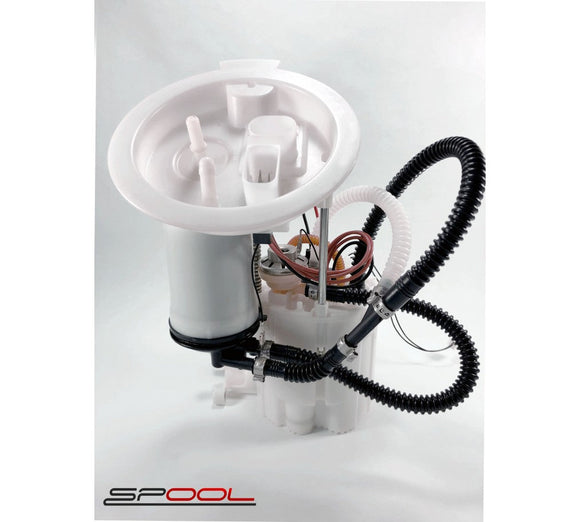

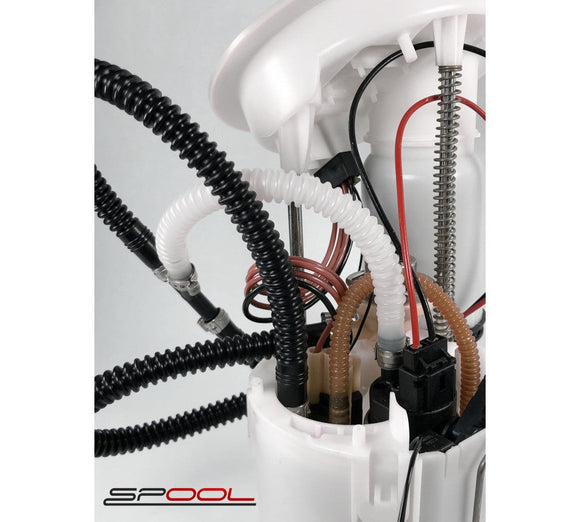

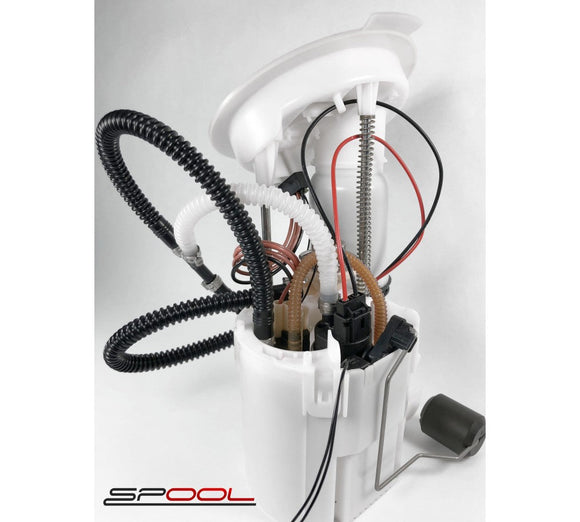

Spool Stage 3 Low Pressure Fuel Pump - [FXX Gen 1 B58]

Spool Performance is proud to introduce the drop-in Stage 3 Low-Pressure Fuel Pump (LPFP) upgrade for the BMW Gen1 B58 platform. As high-pressure fuel pumps have advanced to support greater Direct Injection (DI) fueling, we've identified the stock low-pressure electric fuel pumps, which deliver fuel from the tank to the high-pressure pumps, as a critical bottleneck when pursuing high horsepower—especially with E85 fuel.

Our Stage 3 LPFP kit is the ultimate solution. Featuring a twin-pump configuration, this innovative design activates a secondary pump during boost onset, effectively doubling the flow capacity compared to the stock pump. With this upgrade, you'll achieve sufficient low-pressure fueling to support over 1000whp, regardless of fuel type.

Key benefits of the Spool Performance Stage 3 LPFP:

• Drop-in design: Simplifies installation for seamless integration.
• Twin-pump configuration: Ensures consistent fuel delivery under demanding conditions.
• E85 compatibility: Optimized for high-performance applications.

Kit Includes:

1- Fully Built Drop-in LPFP assembly

1- Secondary Fuel Pump Activation Harness

1- 10psi Hobbs Switch (If "Spool Wiring Harness" option selected)

Vehicle Fitment:

• F20 LCI, M140i
• F20 LCI, M140iX
• F21 LCI, M140i
• F21 LCI, M140iX
• F22, M240i
• F22, M240iX
• F22 LCI, M240i
• F22 LCI, M240iX
• F23, M240i
• F23, M240iX
• F23 LCI, M240i
• F23 LCI, M240iX
• F30 LCI, 340i
• F30 LCI, 340iX
• F31 LCI, 340i
• F31 LCI, 340iX
• F34 GT LCI, 340i
• F34 GT LCI, 340iX
• F32, 440i
• F32, 440iX
• F32 LCI, 440i
• F32 LCI, 440iX
• F33, 440i
• F33, 440iX
• F33 LCI, 440i
• F33 LCI, 440iX

• F36 Gran Coupé, 440i
• F36 Gran Coupé, 440iX
• F36 Gran Coupé LCI, 440i
• F36 Gran Coupé LCI, 440iX
