47-121225

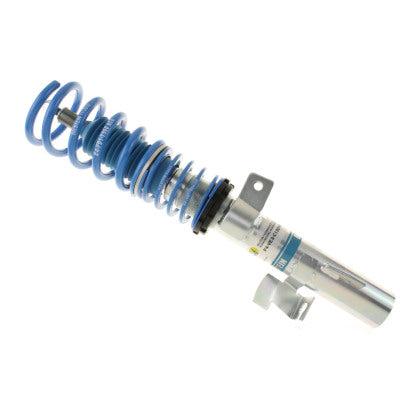

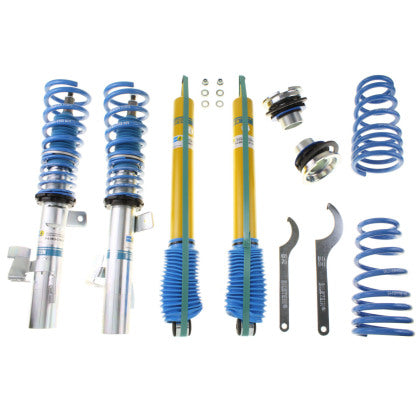

The Bilstein B14 PSS Suspension allows adjustable vehicle ride height without the expense of a fully adjustable damping system. This system features both coilover and standard mono-tube gas pressure shock or struts with performance level valving for application specific, progressive rate coil springs.
*The product benefits at a glance:*
* Threaded body adjustable range of 20 mm
* Lowering of approx. 30-50 mm at front and rear
* Road-tested and fine-tuned by BILSTEIN ride engineers, under extreme motorsports conditions
* Aluminum Spring plates and lock nuts
* Surface coating using Triple-C-Technology®for long-lasting corrosion resistance
* Round threads for easy adjustment
* Quality sport springs made from highly durable material
* Gas pressure technology
* BILSTEIN monotube technology, made in Germany
| Make |
Model |
Submodel |
Year |
Engine |
Notes |
| Mazda |
3 |
i |
2004-2013 |
|
- Front Lowered Height: 25-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
| Mazda |
3 |
Mazdaspeed |
2007-2013 |
|
- Front Lowered Height: 10-25mm, up to 1100kg Axle Load
- Rear Lowered Height: 5-25mm, up to 1090kg Axle Load
|
| Mazda |
3 |
S |
2004-2013 |
|
- Front Lowered Height: 25-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
| Mazda |
3 |
SP23 |
2005 |
|
- Front Lowered Height: 25-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
| Volvo |
C30 |
T5 |
2008-2013 |
|
- Front Lowered Height: 15-30mm, up to 1100kg Axle Load
- Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
|
| Volvo |
C30 |
T5 R-Design |
2012-2013 |
|
- Front Lowered Height: 15-30mm, up to 1100kg Axle Load
- Rear Lowered Height: 10-20mm, up to 1090kg Axle Load
|
| Volvo |
S40 |
2.4i |
2006-2010 |
|
- Front Lowered Height: 35-50mm, up to 1100kg Axle Load
- Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
|
| Volvo |
S40 |
i |
2004-2005 |
|
- Front Lowered Height: 35-50mm, up to 1100kg Axle Load
- Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
|
| Volvo |
S40 |
T5 |
2004-2009, 2011 |
|
- Front Lowered Height: 35-50mm, up to 1100kg Axle Load
- Rear Lowered Height: 35-50mm, up to 1090kg Axle Load
|
| Volvo |
V50 |
2.4i |
2006-2010 |
|
- Front Lowered Height: 20-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
| Volvo |
V50 |
i |
2005 |
|
- Front Lowered Height: 20-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
| Volvo |
V50 |
T5 |
2005-2008, 2011 |
|
- Front Lowered Height: 20-40mm, up to 1100kg Axle Load
- Rear Lowered Height: 20-40mm, up to 1090kg Axle Load
|
