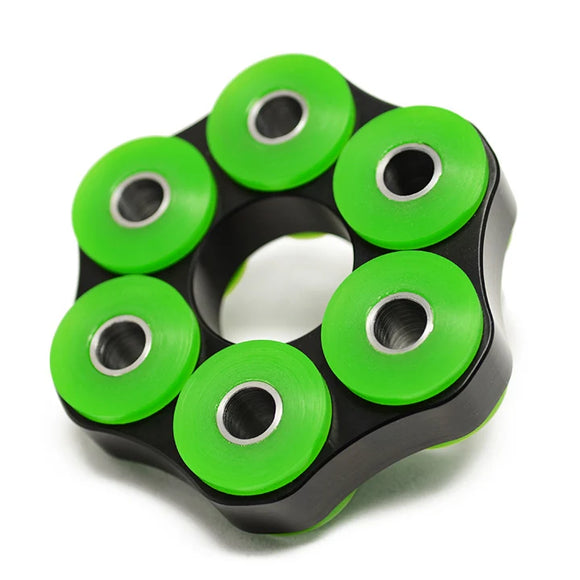

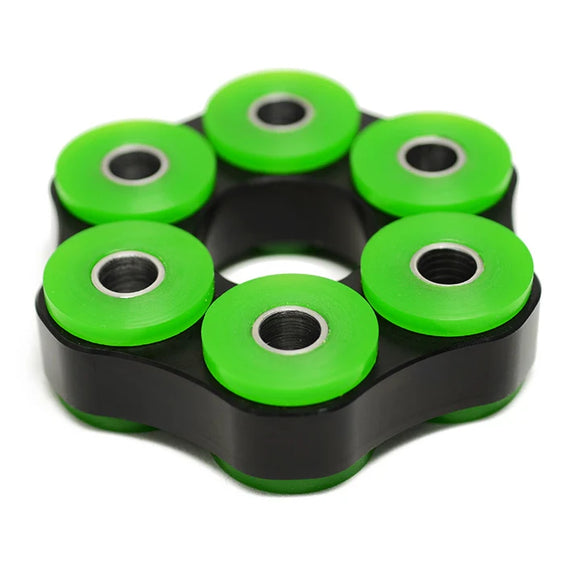

BMW Race Flex Disc - (LK=78mm/12mm)

FOR RACE USE ONLY!

This race flex disc is the small 78mm with 12mm bolt holes. It is commonly found on non-M E36 and E46 vehicles with a manual transmission.

The Revshift race flex disc frame is made from 6061 aluminum with type III hard anodizing and utilizes high quality polyurethane bushings to maximize stiffness and strength while maintaining an appropriate amount of flex.

FOR RACE USE ONLY! This part is very rigid and requires precise installation. The driveline must be properly aligned and all driveline components must be in good condition and properly balanced. The engine mounts, trans mounts, differential bushings, and subframe bushings must all be rigid to prevent driveline movement. We recommend a hardness of 95a or higher for these components. A new center support bearing and driveshaft centering bushing are also recommended.

• 6061-T6 billet aluminum frame
• 95A polyurethane bushings
• Replaces OEM part # 26111227410 (LK=78mm/12mm)
• Rebuildable
