P3 Analog Gauge | BMW F8X | F3X

$419.99 CAD

P3 Cars SKU: LAP3BF3W

Display Colour:: Orange Bars/White Digits
Pre-installed in OEM Vent:: No

Earn [points_amount] when you buy this item.

The P3 Analog Gauge *This gauge IS NOT plug and play. Boost reference from engine is required and wiring needs to be completed for power, ground, and optional analog inputs.

4 Available Analog Readouts

  • Analog boost (yellow/purple/black - dedicated plug for analog boost sensor) *boost tap not included
  • Analog input 1 (brown wire - can read any 0-5 volt linear output sensor)
  • Analog input 2 (blue wire - can read any 0-5 volt linear output sensor)
  • Battery voltage (red wire / black wire - read through power and ground wires)
  • optional auto-dim feature (green wire - connect to any circuit that gets power only when the headlamps are on and enable feature in the configuration menu for the display to auto-dim when the headlamps are on)

Optional Add-Ons

  • OBD2 power/ground tap harness allows you to connect to power and ground through your OBD2 port without any wire splicing (does not add OBD2 functionality)
  • P3 ESVA (ethanol sensor voltage adaptor) allows your gauge to read ethanol content and fuel temp directly from any Continental/GM Ethanol sensor *Ethanol sensor not included
  • Any Other 0-5 Volt Linear Output Sensor Can Be Read oil pressure, oil temp, coolant temp, air ride pressure, egt, etc...

Analog gauge base kit includes

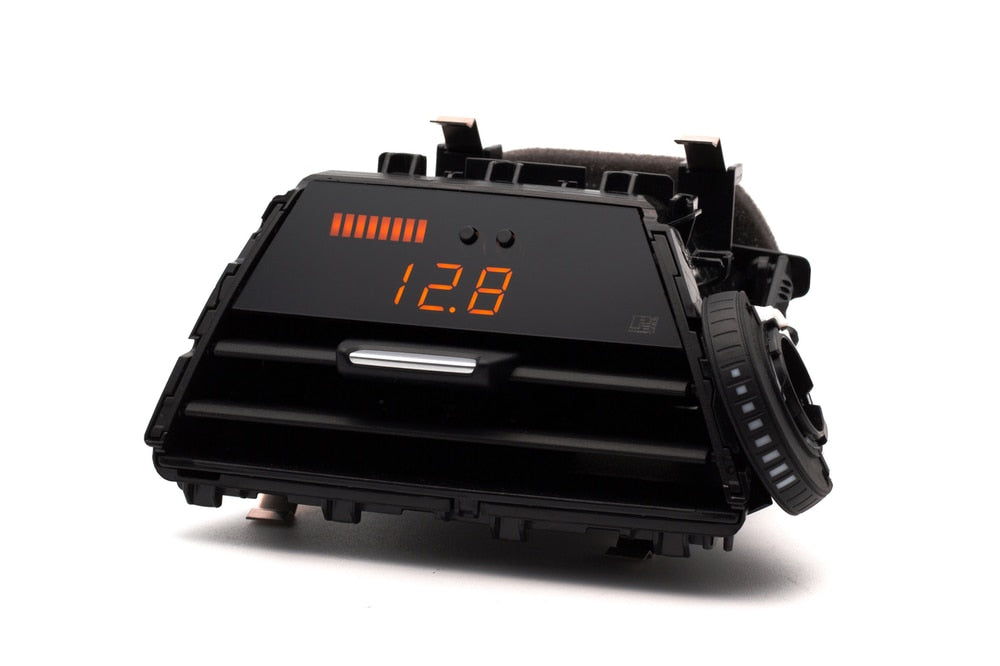

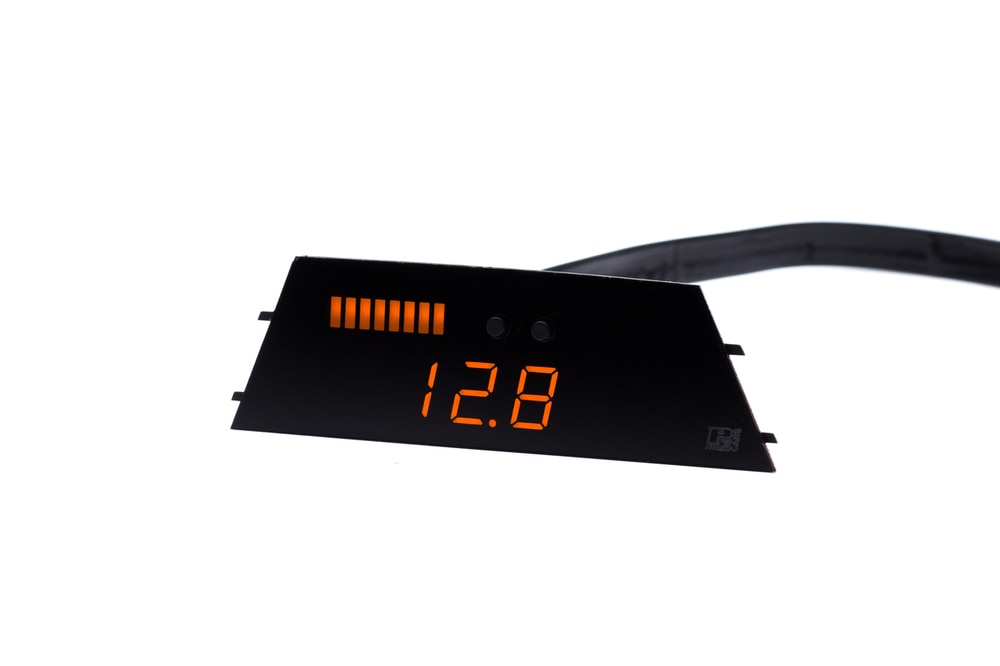

  • Integrated display
  • Analog Box control unit
  • Main harness
  • Hard-wire harness
  • Analog boost sensor *boost tap not included
  • Approximately 5' of 5/32" O.D. boost tubing with 5/32" I.D. hose at each end
  • 3 zip ties
  • 2 scotchlok wire taps



⚠️CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


This Part Fits The Following Vehicles

MAKE MODEL SUBMODEL ENGINE DRIVETRAIN
BMW 3 Series F3X (2012-2019) 320i N20 2.0L
BMW 3 Series F3X (2012-2019) 320i xDrive N20 2.0L
BMW 3 Series F3X (2012-2019) 328i N20 2.0L
BMW 3 Series F3X (2012-2019) 328i xDrive N20 2.0L
BMW 3 Series F3X (2012-2019) 335i N55 3.0L
BMW 3 Series F3X (2012-2019) 335i xDrive N55 3.0L
BMW 3 Series F3X (2012-2019) 330i B48 2.0L
BMW 3 Series F3X (2012-2019) 330i xDrive B48 2.0L
BMW 3 Series F3X (2012-2019) 340i B58 3.0L
BMW 3 Series F3X (2012-2019) 340i xDrive B58 3.0L
BMW 3 Series F80 (2015-2019) M3 S55 3.0L
BMW 4 Series F3X (2014-2019) 428i N20 2.0L
BMW 4 Series F3X (2014-2019) 428i xDrive N20 2.0L
BMW 4 Series F3X (2014-2019) 435i N55 3.0L
BMW 4 Series F3X (2014-2019) 435i xDrive N55 3.0L
BMW 4 Series F3X (2014-2019) 430i B46 2.0L
BMW 4 Series F3X (2014-2019) 430i xDrive B46 2.0L
BMW 4 Series F3X (2014-2019) 440i B58 3.0L
BMW 4 Series F3X (2014-2019) 440i xDrive B58 3.0L
BMW 4 Series F8X (2015-2020) M4 M4 S55 3.0L
