Part Number: 09.8485.11

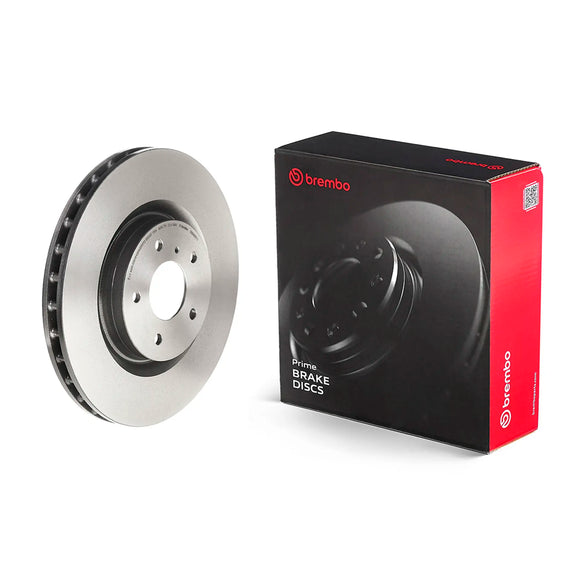

The 09.8485.11 UV painted brake disc is synonymous with reliability
The Brembo brake disc with special UV paint treatment guarantees superior corrosion resistance for the product, thanks to the protective coating on the outer edges and on the disc hub. The UV paint not only gives the disc a clean, shiny appearance but is also beneficial for the environment as the water-based UV paint treatment does not require the use of chemical solvents and is a low energy consumption process.
OE-equivalent
Brembo quality
ECE-R90 certificate
Safety
High carbon
Anti-corrosion
PVT ventilation

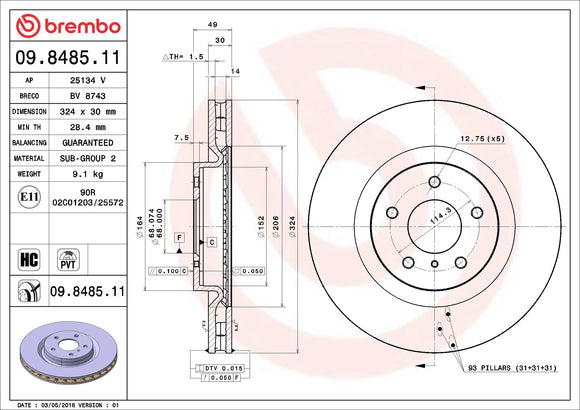

Technical specifications
Diameter Ø
324mm
Thickness (TH)
30mm
Height (A)
49mm
Number of holes (C)
5
Brake disc type
Ventilated
Centering (B)
68mm
Min. thickness
28,4mm
Tightening torque
108Nm
Axle
Front
Units per box
1
EAN code
8020584848517
2003
G35
All
2004
G35
All
2003
350Z
All
2004
350Z
All
2005
350Z
All
2006
350Z
Grand Touring
2006
350Z
Track
2007
350Z
Enthusiast
2007
350Z
Grand Touring
2007
350Z
Nismo
2008
350Z
Enthusiast
2008
350Z
Grand Touring
2008
350Z
Nismo
2009
350Z
Grand Touring
Compatible OE part numbers
40206CD000
NISSAN
40206CD005
NISSAN
