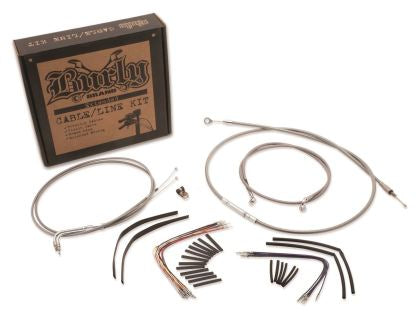

Burly Brand Cntrl Kt 14 Gorla Bar

B30-1127

Complete cable/line installation kit for Burly Ape hangers. Kit includes extended brake line, extended clutch cable/clutch line, extended throttle/idle cables as required and all necessary wiring extensions.Brake lines feature PTFE inner liner and heavy-duty stainless steel outer braid. Dresser kits reuse stock Throttle-By-Wire harness. Made in the U.S.A. Included Items: (1) Stainless steel throttle cable, measures 38 in. housing, 6 in. 90 degree elbow and 4 7/8 in. travel, (2) Brass barrels, (1) Stainless steel idle cable, measures 38 1/4 in. housing, 6 in. 90 degree elbow and 4 5/8 in. travel, (1) Stainless steel clutch cable, measures 70 in. housing and 3 3/4 in. travel, (1) White plastic barrel, (1) 76 1/2 in. stainless steel brake line with (1) 7/16 in. 18 degree banjo and (1) AN#3 female fitting, (1) 16 3/4 in. stainless steel brake line with (1) 3/8 in./10mm straight banjo and (1) AN#3 female fitting, (1) 3/8 in.-24 banjo bolt, (4) 3/8 in./10mm copper crush washers, (1) Junction block with (2) AN#3 male fitting, (2) 15 in. Cam bus wire, (1) 12 in. shrink tubing, (2) 11 in. shrink tubing, (6) 2 1/2 in. shrink tubing, (6) 11 1/2 in. wires with male/female connector ends, Instructions.

Features and Benefits

• Kits are based on using 2 in. risers with Ape hanger-style handlebars
