Burly Brand SS Cntrl Kt 16in Gorla / Louie Bar

B30-1159

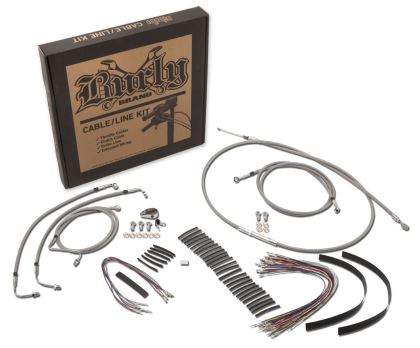

Complete cable/line installation kit for Burly Ape hangers. Kits include extended brake line, extended clutch cable/clutch line, extended throttle/idle cables as required and all necessary wiring extensions. Kit comes in black vinyl or braided stainless steel. Brake lines feature PTFE inner liner and heavy-duty stainless steel outer braid. Dresser kits reuse stock Throttle-By-Wire harness. Made in the U.S.A. Included Items: (1) Stainless steel clutch cable measures 76-3/4 in. W/3-1/4 in. travel, (1) Banjo bolts, (2) 3/8 in./10mm Copper crush washers, (2) 12mm Copper crush washers, (1) Brake line adaptor W/(1) AN#3 fitting and (1) 12mm fitting, (1) 71-1/4 in. Stainless steel brake line W/(1) 3/8 in./10mm 20 degree banjo fitting and (1) 3/8 in.-24 female inverted flare, (1) Fly-by-wire ext. kit W/(1) 6 colored wires, (1) 12 in. shrink tubes and (6) 2-1/2 in. shrink tubes, (1) Fly-by-wire ext. kit W/(1) 6 pin male connector and (1) 6 pin female connector, (2) Can-bus wiring harnesses, (1) 12 in. Shrink tube, Instructions.

Features and Benefits

• Kits are based on using 2 in. risers with Ape hanger-style handlebars
