BXCM-20101-Z3

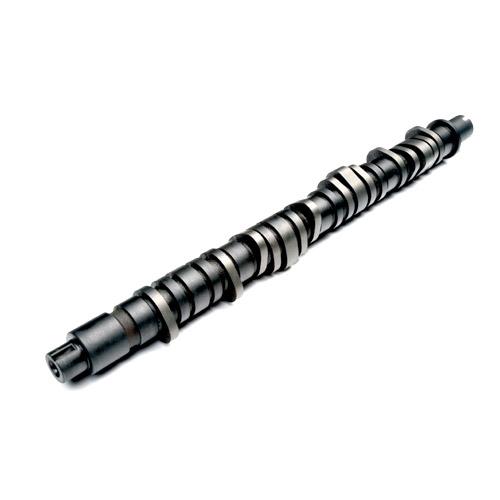

BLOX Racing camshafts are designed and manufactured using OEM-spec, chill-cast camshaft cores. BLOX Racing manufactures camshaft cores specifically tailored to the D16Z6 and D16Y8 engines.
Stage 1 Camshafts:
Ideal for stock to mild engine builds.
Upgraded valvetrain is not necessary but is always recommended.
Stage 2 Camshafts:
Ideal for mild to highly modified engine builds.
Upgraded valvetrain is required. Head porting is HIGHLY recommended.
Stage 3 Camshafts:
Ideal for highly modified to full race engine builds.
Upgraded valvetrain, cylinder head machining + porting, high compression pistons, and ECU tuning are ALL required.
STAGE 1 CAM SPECS @ 0.050"
- INTAKE: 234° / 0.255” (Gross lift: 0.408")
- EXHAUST: 212° / 0.213” (Gross lift: 0.383")
STAGE 2 CAM SPECS @ 0.050"
- INTAKE: 242° / 0.268” (Gross lift: 0.429")
- EXHAUST: 217° / 0.240” (Gross lift: 0.432")
STAGE 3 CAM SPECS @ 0.050"
- INTAKE: 247° / 0.276” (Gross lift: 0.442")
- EXHAUST: 230° / 0.255” (Gross lift: 0.459")
