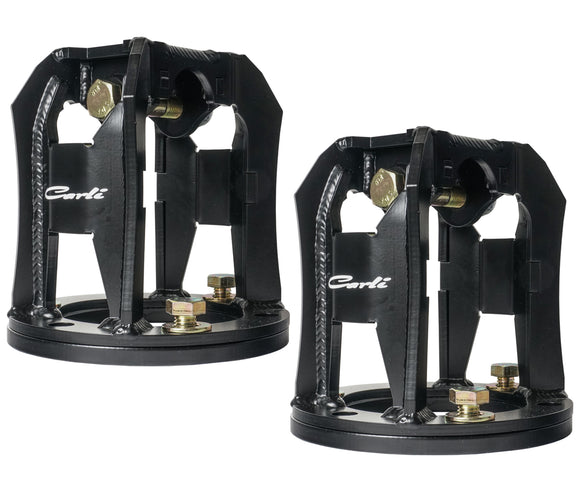

Carli 94-13 Dodge Ram 2500/3500 Fabricated Shock Tower 4.75in 3in Short Arm Systems

CS-DFST475

– 1/4″ Cold Rolled Steel
– Fully Gusseted and Braced
– 3/8″ Stud Ring for extreme durability
– Black Powdercoat Finish
– Height: 4.75″ from base to center of shock bolt.

Description
CS-DFST475 – This shock tower maintains the stock mounting height of the factory tower but converts to an eyelet upper mount. This is compatible with our 3″ and 6″ Lift Dominator Systems.

CS-DFST525 – Designed 1/2″ taller than the factory shock mount, this shock tower makes room for a longer-body on our Carli-spec 3.5″ Kings utilized in our 6″ Unchained System.

CS-DFST625 – 1.5″ Taller than the factory tower, this tower was designed with a “Slide Over” design for easy installation and maximum shock length. Specifically, it accommodates the short-body, long travel shocks in our 3″ Long-Arm equipped systems.

CAD-crafted and laser-cut from 1/4″ cold rolled steel, our Shock Towers are designed to accommodate Carli Performance, Dominator & Unchained Series shocks. Fully gusseted and expertly welded, these Shock Towers are engineered for work & play, delivering extreme strength and maximizing shock travel. Supplied with each tower is 3/8″ Cold Rolled Stud Ring, the largest in the industry, complemented with 1/2″ Grade 8 hardware. The stud ring was designed so that the towers could be easily removed without coil removal, making shock repairs easier. Finished in Black Powdercoat for long-lasting corrosion protection.
