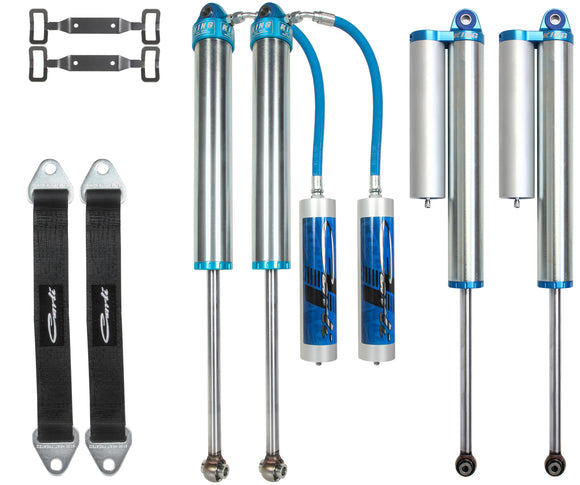

Carli Performance 2.5 Shock Set - Long Arm Valving - 2003-12 Ram 2500/3500 - Diesel

CS-DPER25SPKG-03-D-LA

– Carli Custom Tuned, 5-Port Piston, LONG ARM specific Valving
– King 2.5″ Remote Reservoir Shocks with 17-4 Stainless Shock Shafts
– Includes Front and Rear Shocks, Short Reservoir Mounts, & Limit Straps
– Fitment: 2003-2012 Ram 2500/3500 4×4 Diesel
– Only Compatible with Carli CS-DLRC-10-D Coils and Full Rear Springs
– 6.25″ Shock Towers Required: CS-DFST625 (Not Included)

Description
Carli specific, blueprinted, Long-Travel King 2.5” shocks on all four corners. For the Long Arm system, we designed a second, off-road oriented 5-Port custom piston opposed to the 3-Ports in a short-arm Pintop 2.5” System. This piston and long arm tuning profile alters flow of the pressurized shock oil displacing a wider surface area of the tuning shims to increase bottom-out on sharp hits while providing a predictable, comfortable street ride.  We round off ALL our King shocks with shafts machined and polished from a solid piece of 17-4 Stainless. Unlike King’s standard shafts, there is no coating to wear off, weather is far less likely to hurt them and if there is a small chip, you can round the edges with emery cloth to ensure the seal housing isn’t damaged as they’re not brittle like the stock, hardened shafts. The shocks are finished with King oil good to -55* F. Note that all King shocks are built with a plated steel body. If subjected to inclement weather for extended periods, we recommend wrapping your shocks in 3M to provide a moisture barrier that’s replaceable.

Addition of Fabricated Axle Truss and Rear Fabricated Shock Mounts Recommended.
