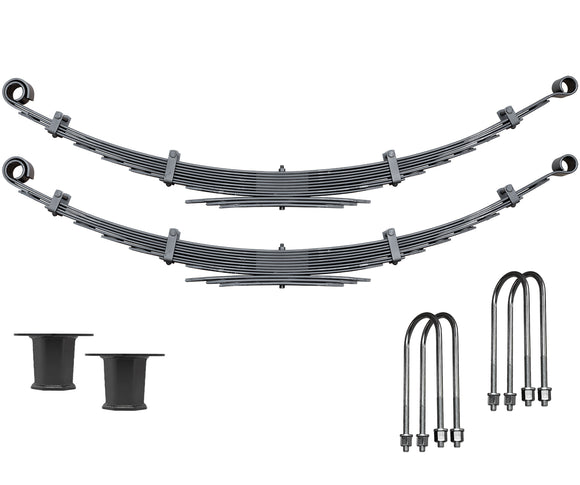

Carli Leaf Spring Kit - 2017-23 Ford F250/F350 4×4 - 1in Lift

CS-FFSP-LVL-17

– Provides a slightly rear high stance to Carli Leveling Suspension Systems
– Reduced Overall Spring Rate to “light 3/4-ton” for a Better Ride
– Increased Progression (Spring Rate)
– Progressive Overload (Factory overload is a hard-stop)
– Dramatically Increased Suspension Travel
– Minimized Friction Throughout the Pack
– Optimal Ride for Commuter, Backcountry, Pintop and E-Venture
– Optimized Center Pin Location to Ensure Maximum Tire Fitment
– Includes Serviceable Bushings, New U-Bolts and Rear Bump Stop Drops
– Fitment: 2017-24 Ford F250/350 4×4, Diesel 3.5-4.0″ Axle Tube

Description
HIGHLIGHTS
Reduced Overall Spring Rate to “light 3/4-ton” for a Better Ride (more on capacity HERE)
Increased Progression (Spring Rate)
Progressive Overload (Factory overload is a hard-stop)
Dramatically Increased Suspension Travel
Elimination of Factory Vulcanized Bushing Bind – Added Ability to Service Cari Bushings
Maximized Spring Efficiency by Minimizing Friction Throughout the Pack
Custom Tuned Commuter, Backcountry, Pintop and E-Venture Shock Packages to the New Rate and Progression of the Carli Leaf Springs
Optimized Center Pin Location to Ensure Maximum Tire Fitment
Military Wrap on Front Eyelet for Safety
Sprayed, OEM Quality Coating Tested to 250 Hour Salt-Spray. The coating is applied to each leaf before assembly to ensure complete coverage.
FACTORY LEAF SPRINGS
Knowing whether to swap leaf springs starts by understanding what’s on the truck and the shortcomings of the design. The factory springs do one thing well – haul. They’re designed and built to handle the max capacity of the truck every day of the truck’s life and, when loaded with max capacity, they ride decent. Thing is, most of these trucks sell to people that will use the HD truck for its intended purpose, but far less frequently than the design intends.

Leaf springs are archaic in design – they either haul well or ride well. You can land anywhere in this spectrum you’d like but there will be sacrifices at the opposite end as you shift throughout. The factory springs slide the scale all the way to the “haul well” end of the spectrum. Let’s dig into their design…

The factory leaf spring are designed with 2-3 stages of spring rate. Pictured is a Stock F250 Leaf Spring Pack with 2 stages.
