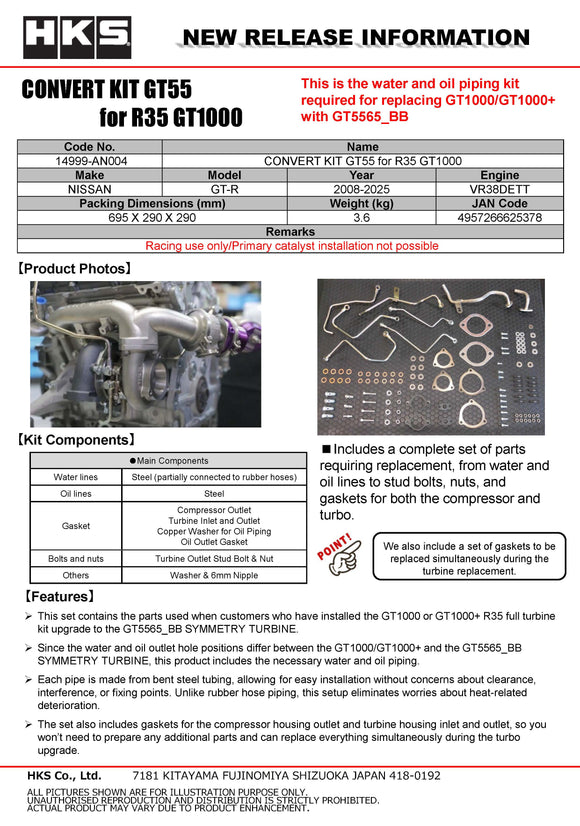

CONVERT KIT GT55 for R35 GT1000

14999-AN004

This is the water and oil piping kit
required for replacing GT1000/GT1000+
with GT5565_BB

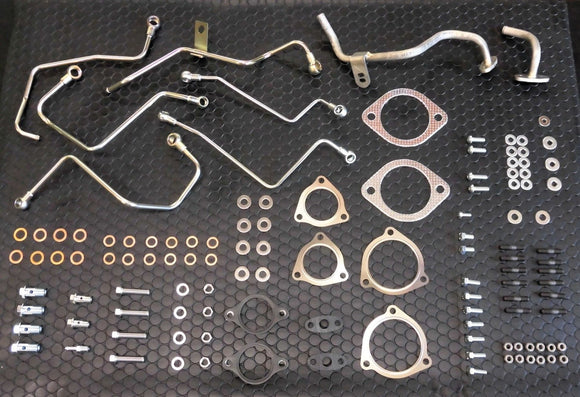

■Includes a complete set of parts
requiring replacement, from water and
oil lines to stud bolts, nuts, and
gaskets for both the compressor and
turbo.

We also include a set of gaskets to be
replaced simultaneously during the
turbine replacement.

●Main Components

Water lines Steel (partially connected to rubber hoses)
Oil lines Steel
Gasket

Compressor Outlet
Turbine Inlet and Outlet
Copper Washer for Oil Piping
Oil Outlet Gasket
Bolts and nuts Turbine Outlet Stud Bolt & Nut
Others Washer & 6mm Nipple

【Features】

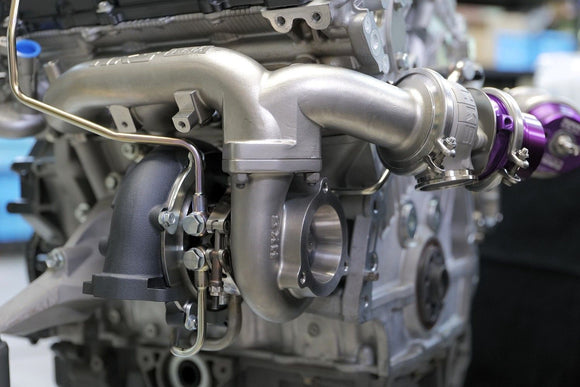

 This set contains the parts used when customers who have installed the GT1000 or GT1000+ R35 full turbine
kit upgrade to the GT5565_BB SYMMETRY TURBINE.
 Since the water and oil outlet hole positions differ between the GT1000/GT1000+ and the GT5565_BB
SYMMETRY TURBINE, this product includes the necessary water and oil piping.
 Each pipe is made from bent steel tubing, allowing for easy installation without concerns about clearance,
interference, or fixing points. Unlike rubber hose piping, this setup eliminates worries about heat-related
deterioration.
 The set also includes gaskets for the compressor housing outlet and turbine housing inlet and outlet, so you
won’t need to prepare any additional parts and can replace everything simultaneously during the turbo
upgrade.
