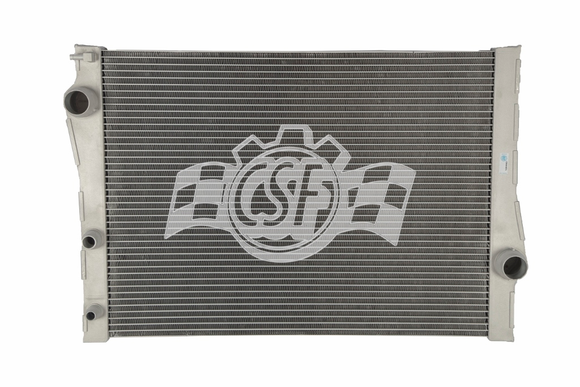

CSF 13-19 BMW X5 3.0L / 14-18 X6 OE Style Aluminum Radiator

CSF 13-19 BMW X5 3.0L / 14-18 X6 OE Style Aluminum Radiator

$362.38 CAD

CSF SKU: csf3648

Description Availability

3648

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • 100% OE style & OE specs for "Dop-in fit"
  • Pre-installed & tested drain plug
  • 100% Hydrostatic tested at 1.5 times operating pressure
Bottom Hose Fitting (in): 1 1/2 Right (in)
Box Height (in): 4 11/16
Box Length (in): 29 1/4
Box Weight (lbs): 11
Box Width (in): 20
Core Length (in): 23 1/4 (in)
Core Material: Aluminum
Core Thickness (in): 1 5/8 (in)
Core Width (in): 17 5/8 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 17 5/8
Inlet Width (in): 1 13/16
No. Of Rows: 2
Outlet Length (in): 17 5/8
Outlet Width (in): 1 13/16
Radiator Cap Supplied: No
Tank Material: Aluminum
Tech Note: O.E.M. Style All Aluminum tanks & core;with quick-connect inlet & outlet pipe.
Top Hose Fitting (in): 1 1/2 Left (in)
Make Model Qualifiers Year
BMW X5
  • Position: N/A
  • 3.0L L6 2993cc
  • Turbocharged
  • DIESEL
 2009-2010
BMW X5
  • Position: N/A
  • xDrive35i
  • 3.0L L6 2979cc
 2011-2013
BMW X5
  • Position: N/A
  • xDrive35d
  • 3.0L L6 2993cc
 2011-2013
BMW X6
  • Position: N/A
  • xDrive35i
  • 3.0L L6 2979cc
 2008-2014
Reference Number Reference Name
13377 DPI
1711 7533 472 OEM
BM3010184 Partslink
