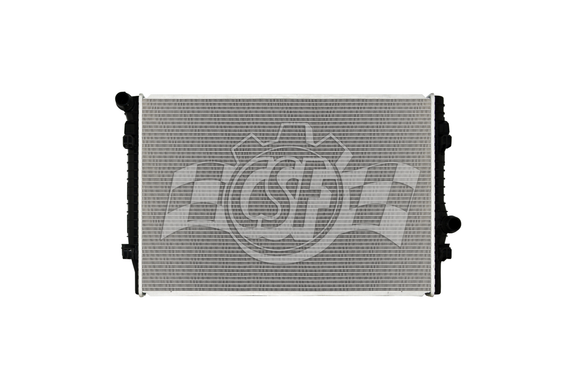

CSF VW 16-20 GTI 2.0L Turbo / 16-18 Golf 1.8L Turbo / 15-19 Golf SportWagen 1.8L Turbo Radiator

CSF VW 16-20 GTI 2.0L Turbo / 16-18 Golf 1.8L Turbo / 15-19 Golf SportWagen 1.8L Turbo Radiator

$214.99 CAD

CSF SKU: csf3922

Description Availability

3922

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road
Bottom Hose Fitting (in): 1 1/4 Right (in)
Box Height (in): 5 1/16
Box Length (in): 31 7/16
Box Weight (lbs): 9
Box Width (in): 20 3/8
Core Length (in): 25 9/16 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 17 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 17 11/16
Inlet Width (in): 1 5/8
No. Of Rows: 1
Oil Cooler (in): No
Outlet Length (in): 17 11/16
Outlet Width (in): 1 5/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe.
Top Hose Fitting (in): 1 1/4 Left (in)
Make Model Qualifiers Year
Volkswagen GTI
  • Position: N/A
  • 2.0L L4 1984cc 121ci
  • Turbocharged
 2016-2020
Volkswagen Golf
  • Position: N/A
  • 1.8L L4 1798cc 110ci
  • Turbocharged
 2016-2018
Volkswagen Golf Alltrack
  • Position: N/A
  • 1.8L L4 1798cc 110ci
  • Turbocharged
 2017-2019
Volkswagen Golf SportWagen
  • Position: N/A
  • 1.8L L4 1798cc 110ci
  • Turbocharged
 2015-2019
Volkswagen Tiguan
  • Position: N/A
  • 2.0L L4 1984cc 121ci
  • Turbocharged
 2018-2020
Volkswagen Tiguan
  • Position: N/A
  • 1.4L L4 1395cc 85ci
  • Turbocharged
 2019-2020
Volkswagen Tiguan
  • Position: N/A
  • 1.4L L4 1390cc 85ci
  • Turbocharged
 2018
Reference Number Reference Name
13703 DPI
5QM121251A OEM
VW3010172 Partslink
