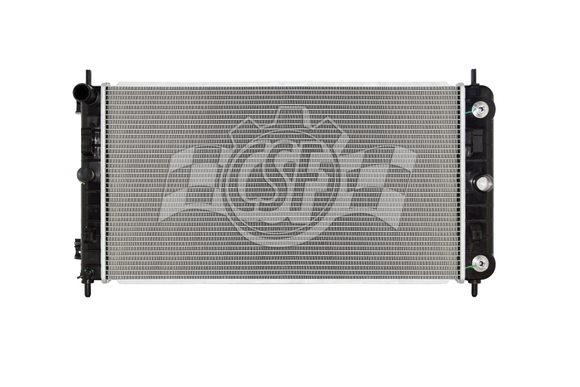

CSF Chevrolet Malibu 3.5L 10-04 / Chevrolet Malibu 3.9L 07-06 / Pontiac G6 3.5L 10-05 Radiator

CSF Chevrolet Malibu 3.5L 10-04 / Chevrolet Malibu 3.9L 07-06 / Pontiac G6 3.5L 10-05 Radiator

$169.99 CAD

CSF SKU: csf3924

Description Availability

3924

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120°F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 5/16 Center (in)
Box Height (in): 5 11/16
Box Length (in): 34 3/8
Box Weight (lbs): 9
Box Width (in): 18 13/16
Core Length (in): 26 3/4 (in)
Core Material: Aluminum
Core Thickness (in): 7/8 (in)
Core Width (in): 14 1/2 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 14 5/8
Inlet Width (in): 1 5/8
No. Of Rows: 1
Oil Cooler (in): 11 1/2 (High-efficiency Plate Type)
Outlet Length (in): 14 5/8
Outlet Width (in): 1 5/8
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tanks & Aluminum core;with quick-connect oil cooler fittings.
Top Hose Fitting (in): 1 5/16 Right (in)
Make Model Qualifiers Year
Chevrolet Malibu
  • Position: N/A
  • 3.5L V6 3490cc 213ci
 2007-2010
Chevrolet Malibu
  • Position: N/A
  • 3.5L V6 3498cc 213ci
 2006-2008
Chevrolet Malibu
  • Position: N/A
  • 3.9L V6 3880cc 237ci
 2006-2007
Chevrolet Malibu
  • Position: N/A
  • 3.5L V6 213ci
 2004-2006
Pontiac G6
  • Position: N/A
  • 3.5L V6 3490cc 213ci
 2007-2010
Pontiac G6
  • Position: N/A
  • 3.9L V6 3880cc 237ci
 2006-2009
Pontiac G6
  • Position: N/A
  • 3.5L V6 3498cc 213ci
 2005-2009
Pontiac G6
  • Position: N/A
  • 3.5L V6 213ci
 2005-2006
Saturn Aura
  • Position: N/A
  • 3.5L V6 3490cc 213ci
 2007-2008
Reference Number Reference Name
15873468 OEM
2727 TYC
2727 DPI
2972 TYC
2972 DPI
52494386 OEM
8012727 APDI
CU2727 SPI
GM3010444 Partslink
GM3010508 Partslink
