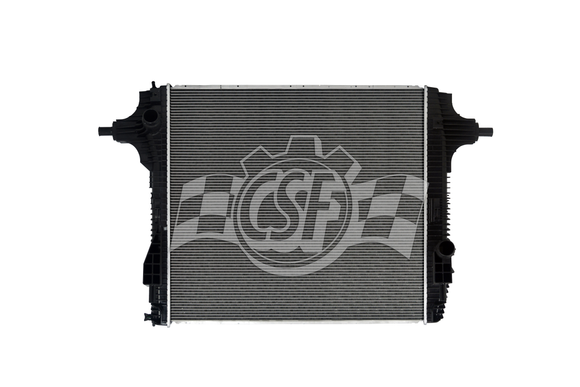

CSF 17-25 Ford F-250 Super Duty 6.2L OEM Plastic Radiator

CSF 17-25 Ford F-250 Super Duty 6.2L OEM Plastic Radiator

$434.99 CAD

CSF SKU: csf3947

Description Availability

3947

CSF factories are ISO/TSO certified;CSF Radiators are designed and built to High Performance Standards & sold worldwide for over 50 years - over 30 Million Units Sold!;Our Radiators are carefully engineered & Wind Tunnel Tested in labratory for Cooling Performance Validation;We have over 10,000 different models of Radiators that we manufacture & supply for all the leading brands of vehicles on the road

  • OEM specified Plastic Tank-Aluminum Core Construction
  • Tanks are made from Virgin Grade Engineered plastic resins, which are "Glass Filled" for added Strength & Durability
  • Gaskets are made from Special Grade "EPDM" rubber to withstand extreme temperatures of up to -120°F
  • Tubes - Welded Type or Latest Generation "B-Tube" Design
  • Fins (Heart of Radiator) - High Performance "Multi-Louvered Design" - OEM Spec
  • 100% leak tested before leaving factory at 150% of operating pressure
  • Industry Best Packaging - "10 Foot Drop Test" Standard
  • Drop-in Fit
  • High Performance Transmission Cooler with special Built-in Turburlator, when applicable
  • All components are installed, torqued, & tested on Radiator during assembly
Bottom Hose Fitting (in): 1 7/8 Right (in)
Box Height (in): 10
Box Length (in): 50 1/8
Box Weight (lbs): 20
Box Width (in): 32 3/16
Core Length (in): 30 3/8 (in)
Core Material: Aluminum
Core Thickness (in): 1 1/4 (in)
Core Width (in): 27 11/16 (in)
Cross-flow/ Down-flow: Cross Flow
Hazardous Material: No
Inlet Length (in): 28 3/8
Inlet Width (in): 2 3/16
No. Of Rows: 1
Oil Cooler (in): 12 (High-Efficiency Round Type)
Outlet Length (in): 28 3/8
Outlet Width (in): 2 3/16
Radiator Cap Supplied: No
Tank Material: Plastic
Tech Note: O.E.M. style Plastic tank & Aluminum core with quick-connect inlet & outlet pipe & quick-connect oil cooler fittings. Upgraded Heavy Duty Core. 15% Thicker 31mm vs OEM 27mm
Top Hose Fitting (in): 1 7/8 Left (in)
Make Model Qualifiers Year
Ford F-250 Super Duty
  • Position: N/A
  • 6.2L V8 6210cc 379ci
 2017-2022
Ford F-250 Super Duty
  • Position: N/A
  • 7.3L V8 7292cc 445ci
 2020-2025
Ford F-250 Super Duty
  • Position: N/A
  • 6.8L V8 6801cc 415ci
 2023-2025
Ford F-350 Super Duty
  • Position: N/A
  • 7.3L V8 7292cc 445ci
 2020-2025
Ford F-350 Super Duty
  • Position: N/A
  • 6.2L V8 6210cc 379ci
 2017-2022
Ford F-350 Super Duty
  • Position: N/A
  • 6.8L V8 6801cc 415ci
 2023-2025
Reference Number Reference Name
13717 DPI
13849 DPI
FO3010356 Partslink
HC3Z8005C OEM
HC3Z8005D OEM
HC3Z8005F OEM
HC3Z8005G OEM
