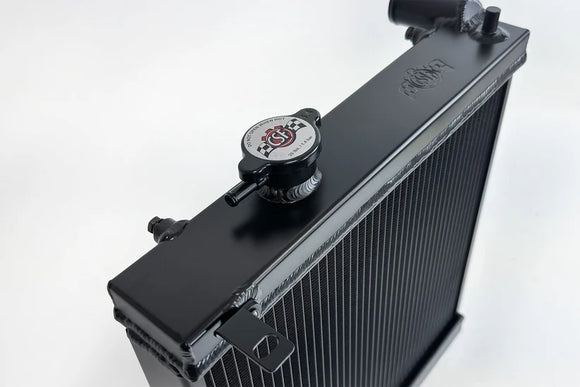

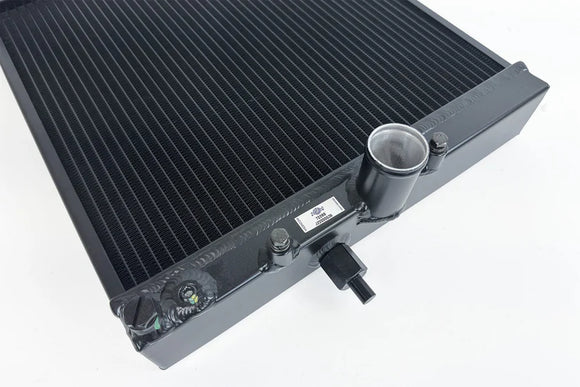

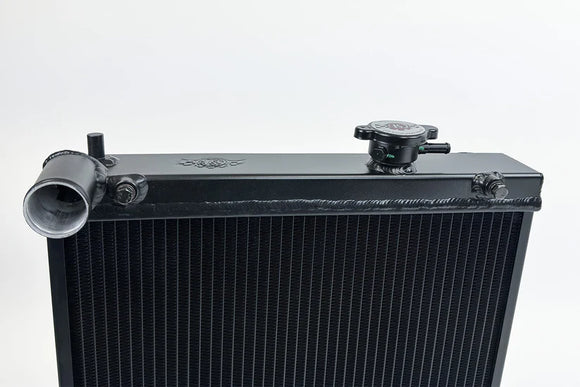

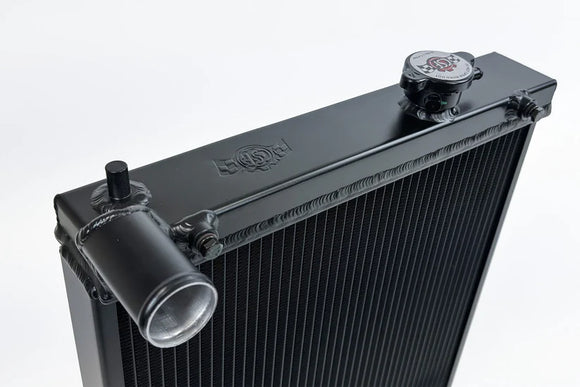

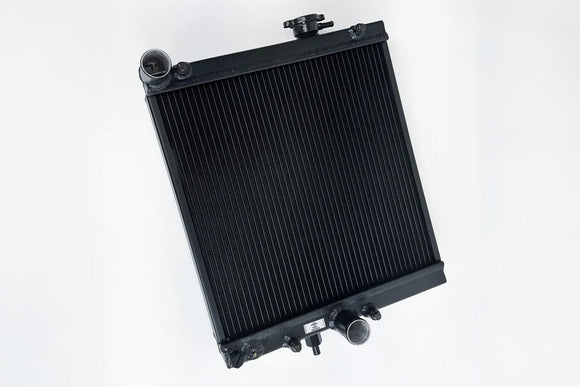

Evo 7/8/9 High-Performance All-Aluminum Half Radiator - Black

7228B

Many Evo 7, 8, and 9 owners have relied upon CSF Radiators to keep their high horsepower DSMs cool for years. The Ultimate Half Radiator (CSF #2858X/2858XB) is one of CSF's most popular universal radiators, and has become over the years the "Go-To" option for Evo owners running large turbos with forward facing manifolds that won't fit with a full size radiator. The demand for those half radiators has been so high that Turn 14 Distribution asked CSF to design a half rad specifically for the Evo 7, 8, and 9.

This new radiator enters the market at a lower price point meant to be a more economical solution for the cost conscious customer compared to the more feature-rich kit of the CSF #2858X/2858XB. With that being said, CSF's new Evo half rad has a full suite of new and innovative features incorporated into the design, more than any other competitor with a similar product on the market. CSF is pleased to introduce the new Evo 7-9 High-Performance All-Aluminum Half Radiator. Exclusively available from Turn 14 Distribution and their dealer network.

The Evo's 4G63 loves a big turbo. However, these turbos add a lot of extra heat to the system. Therefore, CSF designed the new half radiator to offer the best cooling performance in a compact design. The new radiator shares the same 2-Row 42mm High-Performance core that has been race proven on countless Evos running the Ultimate Half Radiator (CSF #2858X/2858XB). CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance. This Half Radiator is also compatible with the CSF 12-inch high performance SPAL fan and shroud kit. This can be added-on or purchased separately at any time (CSF #2858F / #2858FB).

• Provides Clearance for Forward Facing and Twin-Scroll Turbocharger Setups
• 2-Row - 42mm Ultra-High-Performance Core
• 40 Cooling Tubes with CSF's Exclusive B-Tube Technology
• 6.5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact
• CNC Machined Mounting Boss and Elevated Mounting Pin
• Adjustable Mounting Bracket and Plug System for the Top of the Tank
• 2-Way Adjustable Breather Pipe
• OEM Style "Slip-on" Hose Connections
• 1/8th NPT Temp Sensor Port on Bottom End Tank (Plug Included)
• 100% All Aluminum TIG-Welded Construction
• 1.4 Bar (20psi) High Pressure Radiator Cap with CSF logo
• True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
• Fitment Note: Will not work with Factory or Factory style over radiator intake ducts.

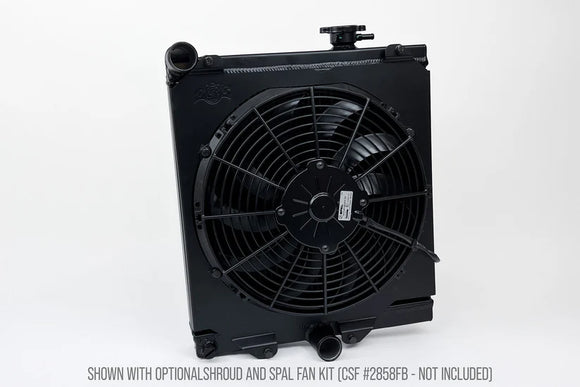

• Compatible with the CSF 12-inch SPAL fan and shroud kit (CSF #2858F / #2858FB)
• Individually Leak and Pressure Tested
• Satin Black Finish for OEM+ Look
• 2-Year Warranty

• Mitsubishi: MR464612
• Mitsubishi: MZ690911
