CTS-CRI-14422
Description

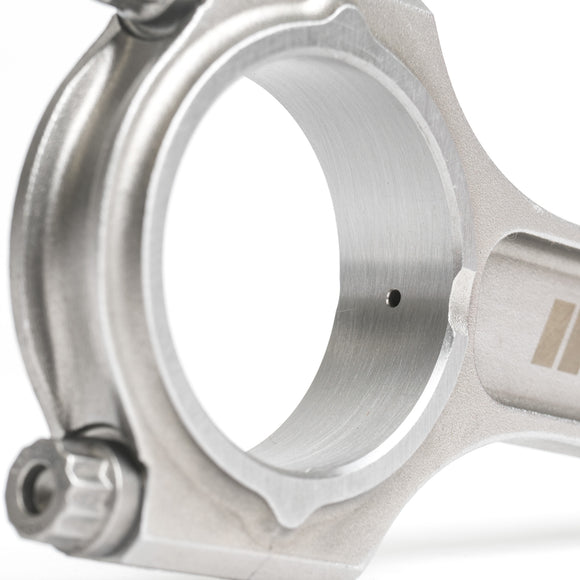

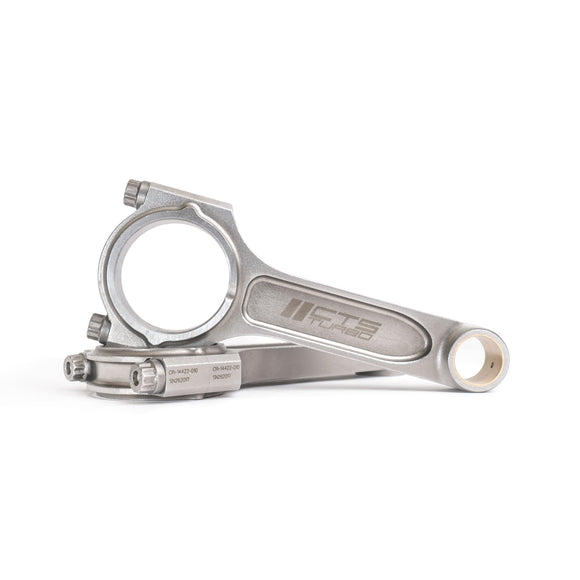

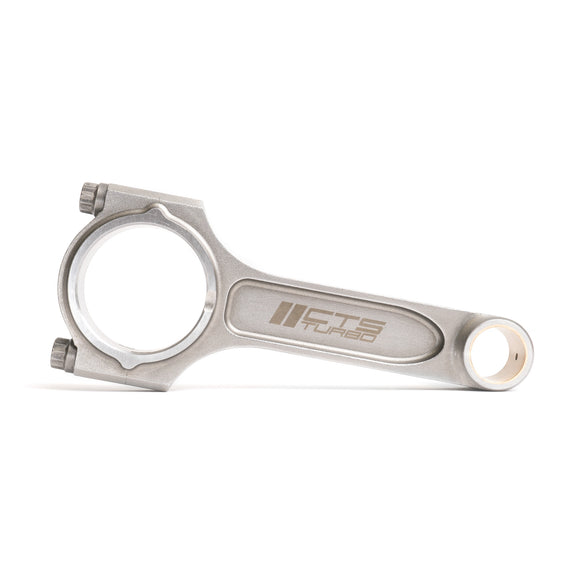

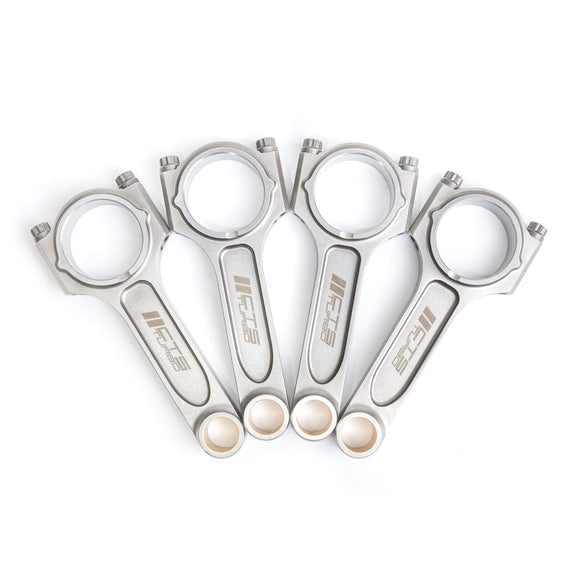

We are excited to announce our forged I-beam 144×22 rifle drilled connecting rods for VW MK5, MK6, MK7/MK7.5 & Audi B8, C7, 8P, 8J, 8V, 8S designed to work with aftermarket pistons. Our connecting rods have been strengthened to accommodate for larger turbos and boost while maintaining reliability.

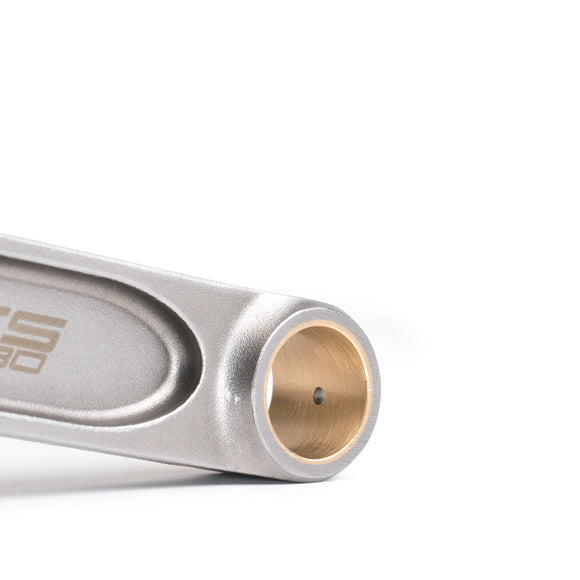

Rifle Drilled
Rifle drilling will increase the longevity of the pin by allowing extra lubrication.
I-Beam
The I-Beam design handles high compressive loads while also providing excellent torsional stiffness.
Honing & CMM
Every connecting rod is measured on our in house CMM (coordinate measuring machine) and honed to ensure our connecting rod tolerances are set correctly.

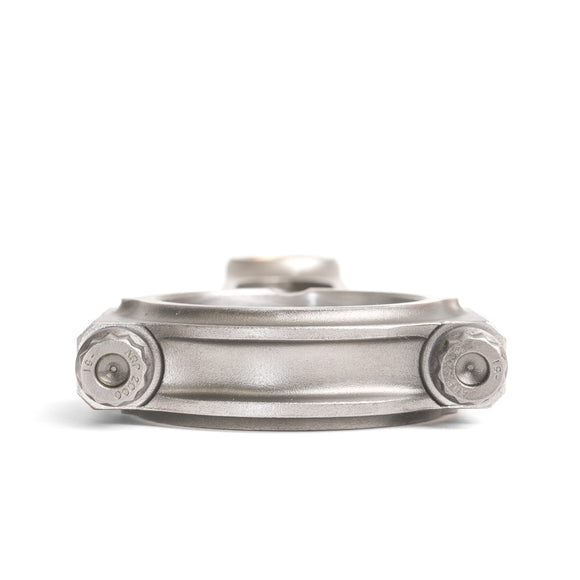

ARP Bolts
All CTS Turbo connecting rods use ARP 2000 rod bolts
Product Specifications
- Forged 4340 chromoly steel
- I-beam design
- Center to Center: 144mm
- Wrist Pin Diameter: 22mm
- Big End Journal Width: 21.90mm
- Wrist Pin Style: Non-tapered
- Big End Journal Diameter: 50.60mm
- Rod Bolt Dimensions: 3/8″
- Genuine ARP hardware
- Precision honed, measured and balanced in Canada
Fitment
VW/Audi 2.0T TSI (EA888 Gen 1, 2, & 3)
