Side Mount Intercooler Kit 1.9 8v TDI PD130 ASZ & US BEW PD100

DSD1233

Side Mount Intercooler Kit 1.9 8v TDI PD130 ASZ & US BEW PD100

Darkside Upgraded Performance Side Mount Intercooler (SMIC) Kit for VW Golf Mk4 Platform 1.9 8v TDI PD130 ASZ & US BEW PD100

Our 51mm Alloy Pipework and Upgrade Side Mount Intercooler Kit replaces the stock restrictive plastic intercooler and rubber / plastic boost hoses which are known to crack or degrade over time causing boost leaks and a loss of power.

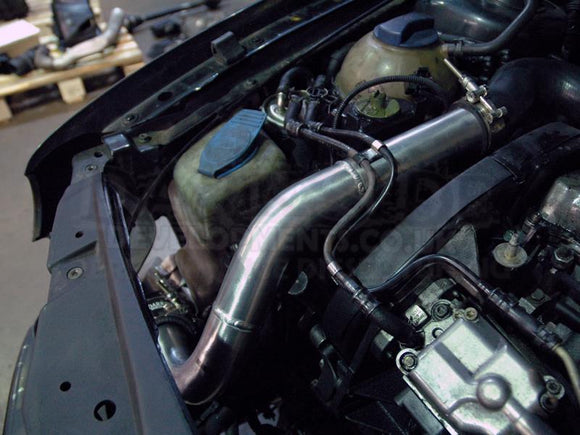

The welded Alloy Pipes are 51mm and fit perfectly in place of the stock turbo pipes, we have the option to supply a clip connector retaining the EGR / ASV or we can supply a 51mm / 57mm silicone to suit an EGR delete race pipe.

This intercooler is capable up to 230bhp, above this we recommend a Front Mounted Intercooler with greater airflow to keep IAT's low.

• Upgraded Alloy Side Mount Intercooler
• 51mm Alloy Pipes for increased flow
• Replaces plastic pipes and weak joints which are prone to boost leaks

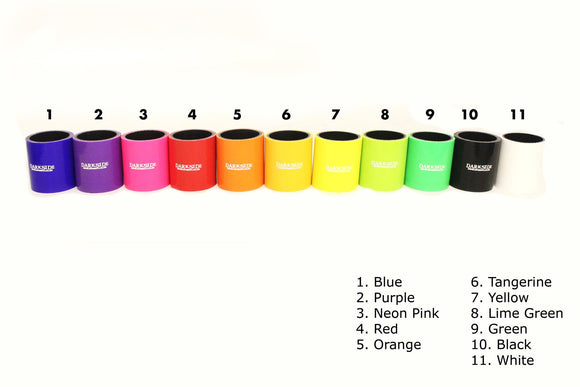

• 3 Ply Silicone Hoses - (12 Colours Available)
• Stainless Steel T-Bolt Clamps for Secure Fitting
• Designed and Manufactured in the UK

Intercooler Kit Options:

EGR / ASV Options

Retain EGR Valve / ASV Clip Connector - Clip Connector Adapter and Silicone Hose
51mm EGR Delete - 51mm Silicone Hose
57mm EGR Delete - 57mm Silicone Hose

Installation Notes:

This will NOT fit the Seat Ibiza / VW Polo and Skoda Fabia please see below for the correct kit.

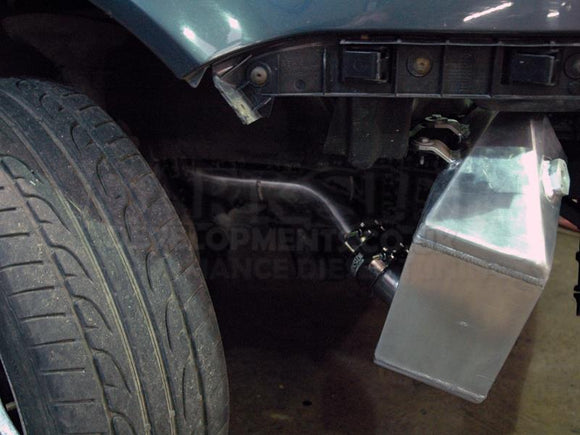

Vehicles fitted with skid plates / side plates may need to modify these for the bottom pipe to fit.

All the silicones included in the kit may require slight Trimming to suit your set up, These are left long to take in to consideration tolerances between cars.

Sometimes the EGR clip connector can be quite tight to push in due the tolerances we have them machined to. We have found that warming the turbo compressor housing with a heat gun helps the clip push in.

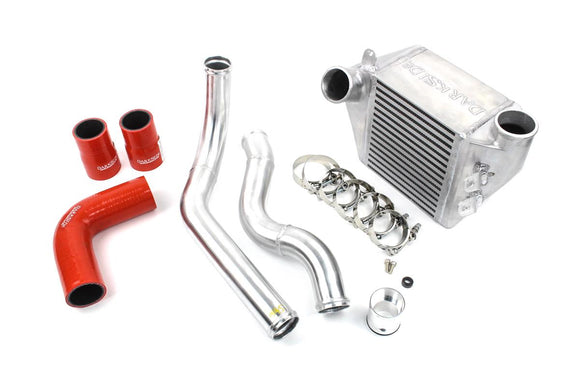

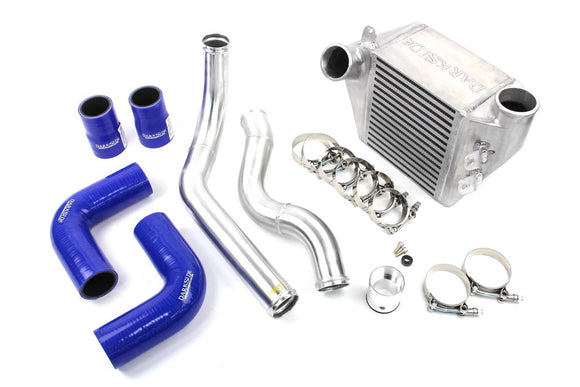

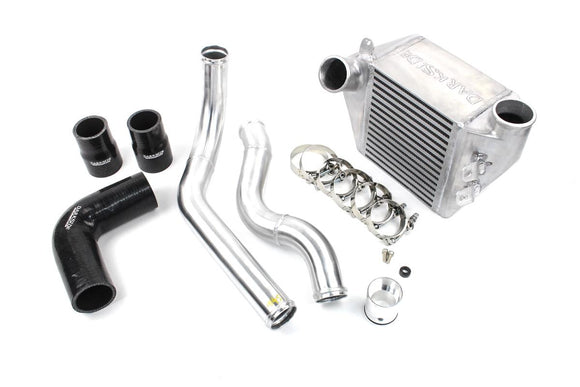

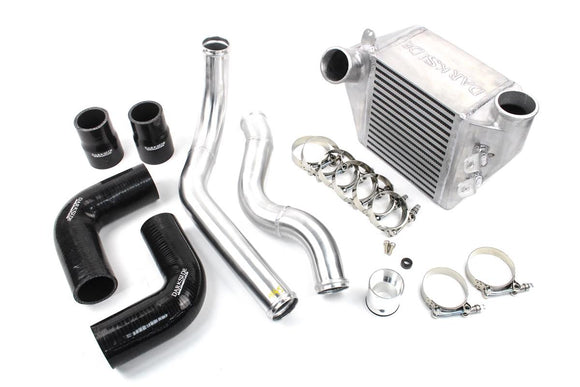

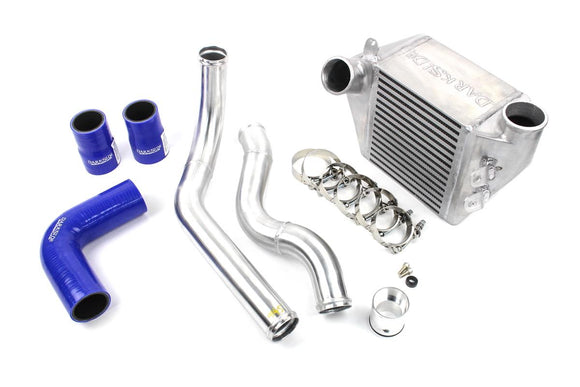

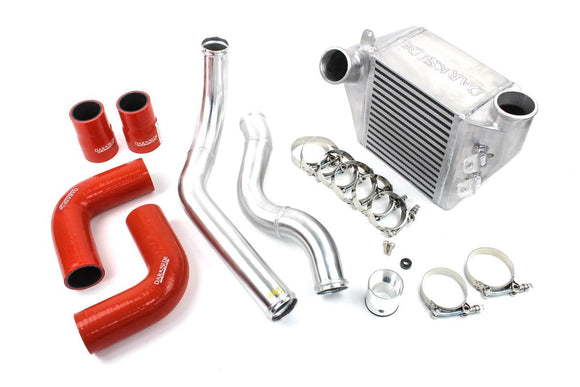

This Kit Consists of the following:

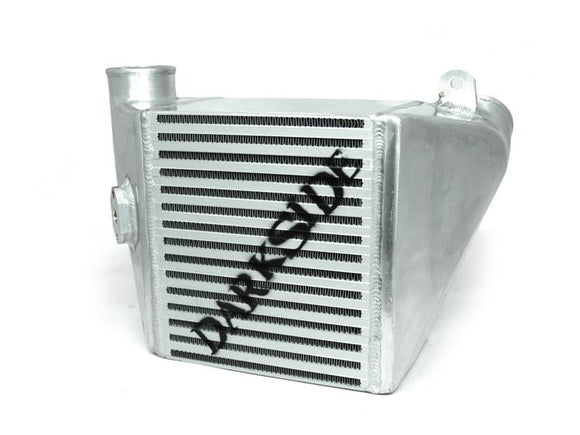

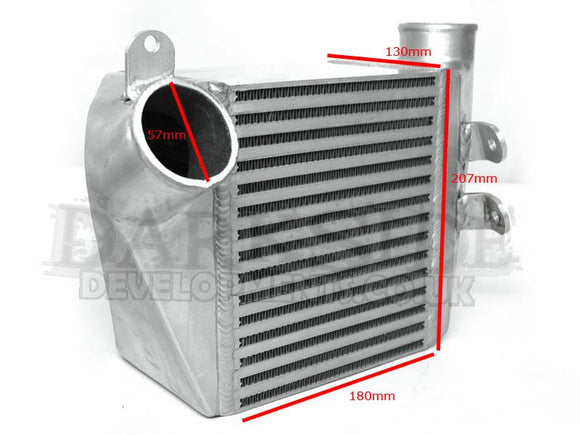

Upgraded Alloy Side Mount Intercooler with Map Sensor Hole
51mm Alloy Pipe Kit
CNC Machined Clip Connector Adapters with Viton Seals (Optional)
3 Ply Silicone Boost Hoses
Stainless Steel T-Bolt Clamps

Upgraded Side Mount Intercooler Kit for 1.9 TD VE 90 / 110 / PD100 & PD115

https://www.darksidedevelopments.co.uk/products/upgraded-side-mount-intercooler-kit-for-1-9-td-ve-90-110-pd100-pd115.html

SeatSport Ibiza Cupra (FMIC) Intercooler for Seat Ibiza / VW Polo & Skoda Fabia:

https://www.darksidedevelopments.co.uk/products/seatsport-ibiza-cupra-fmic-intercooler-for-seat-ibiza-vw-polo-skoda-fabia.html

Hard Pipework Kit for Seat Ibiza / VW Polo & Skoda Fabia with SeatSport FMIC:

https://www.darksidedevelopments.co.uk/products/hard-pipework-kit-for-seat-ibiza-vw-polo-skoda-fabia-with-seatsport-fmic.html

This Kit will fit Vehicles with the following Engine Codes:

Audi A3 - ASZ (130)

Seat Alhambra - ASZ (130)

Seat Cordoba - ASZ (130)

Seat Leon - ASZ (130)

Seat Toledo - ASZ (130)

Skoda Octavia - ASZ (130)

VW Bora - BEW (100) ASZ (130)

VW Golf - BEW (100) ASZ (130)

VW Sharan - ASZ (130)
